Key features EcoLine in lightweight construction Clear aperture 40 mm Rotation Range 360°, endless Double row ball bearings Speed up to 1100 °/sec Load up to 2 kg Reference switches integrated (Hall sensors HLS) Module combination (does this mean "modular assemply") Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
2Phase-047	10	20	5	0.1	150
2Phase-042  (Pollux & Controller System)	10	20	5	0.1	150

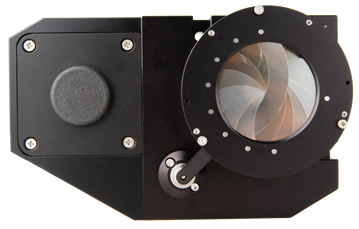

D E S C R I P T I O N	DT-80 R Option Iris Diaphragm 0-40 mm

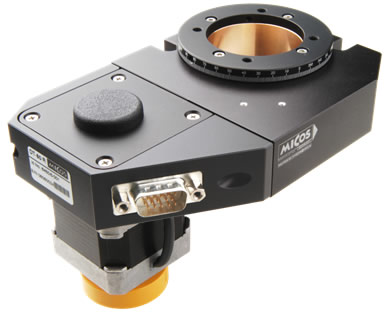

The NEW Rotation Stage DT-80 R rotation stages of the 80 structural series are a low cost alternative to the MICOS DT-65 N and PRS-110 high precision rotation stages. They are mainly applied for simple positioning tasks and enlarge the range of our low cost translation stages of the 80 structural series. The belt driven DT-80 R rotation stage allows a much higher speed of rotation in comparison to other stages. The continuous aperture of 40 mm diameter is suitable for many applications in the range of microscopy. The belt driven combination is prestressed with nearly zero backlash and produces a smooth move. Structural series 80 rotation stages are directly driven by 2-phase micro-step (SMC-series) or MICOS SMC Pollux motor- controller combination. DT-80 R rotation stages are equipped with reference switches (HLS).



Technical data
Rotation Range (°)	360, endless
Balt Druve Reduction	4:1
Accuracy (°)	+/- 0.1
Repeatability (°) Uni-directional (without load)	+/- 0.008
Reversal Error (°) (without load)	0.01
Velocity Range (°/sec)	0.001 ... 1100
Flatness (µm)	+/- 50
Eccentricity (µm)	+/- 30
Wobble (µrad)	+/- 100
Speed max. (°/sec)
2Phase-047	900
2Phase-042	1100
Resolution Open-Loop (°)
2Phase-047	0.0025 (SMC) | 0.225 (FS)
2Phase-042	0.0025 (SMC) | 0.45 (FS)
Resolution Closed-Loop (°)
RE-005, Rotary encoder feedback	0.002
Nominal Current (Amps) / Voltage (Volts)
2Phase-047	1.2 | -
2Phase-042	0.4 | 24
Material	black anodized aluminium
Weight (kg)	0.8
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see: Appendix



DT-80 R Motors
	2Phase-047		2Phase-042



DT-80 R Base
	Rotation range 360°. endless





DT-80 R Ordering information
Rotation Stage			Order-No.
DT-80 R	2SM HLS		6450-9-2001
DT-80 R	PolluxI HLS		6823-9-3001
Rotation Stage Iris options			Order-No.
DT-80 R	2SM HLS IRIS		4711-9-2001
DT-80 R	PolluxI HLS IRIS		4711-9-3001
