D
E S C R I P T I O N

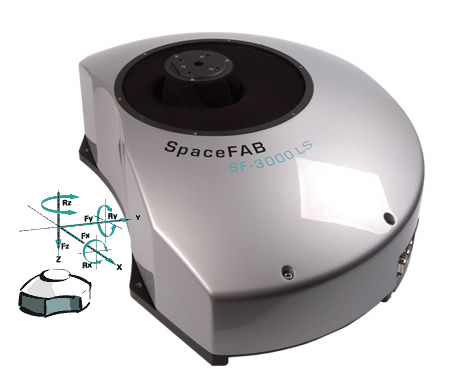

The SpaceFAB
SF-3000 LS is low cost alternative
to MICOS SpaceFAB SF-3000 LS and is especially
designed for simple tasks of positioning.
With one SpaceFAB SF-3000 LS all six
degrees of freedom can be moved without
additional positioning elements. SpaceFAB
SF-3000 LS was especially developed for
easy alignment applications. Furthermore
SpaceFAB SF-3000 LS is perfectly designed
for micro-fabrication
and bio-genetic. The core software used for the SpaceFAB SF-3000
LS is the MICOS Motion Server. The Motion Server includes all
the mathematical transformations so that the user can start
movements directly by specifying the six coordinates x, y,
z, Rx, Ry and Rz. It is also possible to move arbitrary trajectories
in a contouring mode. The Motion Server can be used as a stand
alone software or in combination with MICOS or selfmade applications.
These applications can be written in any modern programming
language, the communication is done with TCP/IP. For motion
sequences, a recipe editor is also available.
|
|
S
O F T W A R E
|
| Calculation
of motion path with collision dedection |
Pivot
point can be set by the customer
|
Graphic
display of the robot from any view
|
Digital
display of position and orientation
|
|
Control
by Macro-language stored in own editor
|
|
Control
by 3D-space-mouse possible
|
Jog
mode
|
|
| Technical
data |
Travel
Range
|
| X,
Y (mm) |
50
x 12.7
|
| Z
(mm) |
100
|
| Rx,
Ry (°) |
10
|
| Rz
(°) |
10
|
|
| Bi-directional
Repeatability (µm) (without
load) |
|
| X,
Y |
+/-
5
|
| Z |
+/-
5
|
|
| Repeatability
(µrad) (without
load) |
|
| Rx,
Ry |
+/-
200
|
| Rz |
+/-
200
|
|
| Speed
max. (mm/sec) |
|
| 2Phase-042 |
|
| X,
Y (mm/sec) |
10
|
| Z
(mm/sec) |
10
|
| Rx,
Ry (°/sec) |
6
|
| Rz
(°/sec) |
6
|
|
| Resolution
(without load) |
|
| X,
Y (µm) |
4
|
| Z
(µm) |
4
|
| Rx,
Ry (°) |
0.008
|
| Rz
(°) |
0.008
|
| Material |
|
| Weight
(kg) |
24
|
Note: Fore
more detailed informations, please contact us.
For turned key solutions, please contact us.
The travel range is depending on the position of the pivot point |
|
