Key features Travel range up to 50 mm Clear aperture 56 mm Center load capacity 20 kg Crossed-roller bearings Special, tempered Aluminium Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)
MM-010	100	80 / 10	200	35



Technical data
Travel Range (mm)	25	50
Micrometer Pitch (mm)	0.5
Straightness / Flatness (µm)	+/- 1
Pitch (µrad)	+/- 80
Yaw (µrad)	+/- 80
Scale Resolution (µm)
MM-010, Micrometer	10
Sensitivity (µm)
MM-010, Micrometer	1.2
Material	Tempered Aluminium , black anodized
Weight (kg)	1.2	1.4

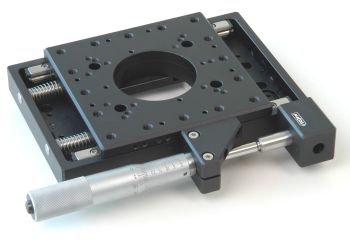

AMT-120 Base
	Travel ranges 25 mm 50 mm





AMT-120 Ordering information
Linear Stage	Order-No.
AMT-120 25 mm	6227-9-100
AMT-120 50 mm	6227-9-200
