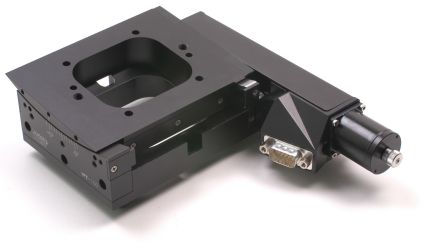

	2.180		Goniometer WT-100

	Key features

			Clear aperture 60x25 mm

			Repeatability 0.0001744°

			Angular scale feedback

			Tachometer combination

			Precise, smooth continuous 10° motion

			Speed up to 15°/sec

			Single-row ball bearings

			Special, tempered Aluminium

			Load up to 2 kg
			Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
DC-B-070	15	20	0.75	4	25
2Phase-020	15	20	0.75	4	25

D E S C R I P T I O N

The Goniometer Stages WT-100 and WT-85 are designed for all tasks where conventional rotation stages cannot be employed due to limited space conditions. Typical applications are measuring tasks in the field of laser- and radio-technology. The Goniometer Stages WT-100 and WT-85 are well-suited to each other. Orthogonally mounted they have a common spacial center. WT-100 is equipped with a ground wire guiding. The ground and hardened screw worm-gear wheel combination produces a very quiet smooth move. Directly driven by DC-,2-phase step motors high travel speed and resolution can be achieved. WT-100 Stages can be equipped with optical angular system. Resolutions up to 0.0000872 are standard offered. The Goniometer WT-100 is standardly equipped with two limit switches. More pictures ...

Technical data
Rotation Range (°)	10
Reduction	720:1
Accuracy (°)	+/- 0.01 ... 0.04
Repeatability (°)	+/- 0.0000872 ... 0.004
Reversal Error (°)	+/- 0.0000872 ... 0.0064
Velocity Range (°/sec)	0.001 ... 15
Wobble (µrad)	125

Speed max. (°/sec)
DC-B-070	15
2Phase-020	7

Resolution Open-Loop (°)
2Phase-020	0.001 (SMC) \| 0.002 (FS)

Resolution Closed-Loop (°)
RE-010, Rotary encoder
AE-060, Angular scale	0.0000872

Current (Amps) / Voltage (Volts)
DC-B-070	0.93 \| 36
2Phase-020	1.2 \| -

Material	Special Aluminium, black anodized
Weight (kg)	0.9

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

WT-100 Motors

DC-B-070		2Phase-020

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

WT-100 Base

Rotation range

10°

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

WT-100 Ordering information


DC-B-070 2Phase-020	1 2

without AE-060 AE-060, Angular steel scale		0 1

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
