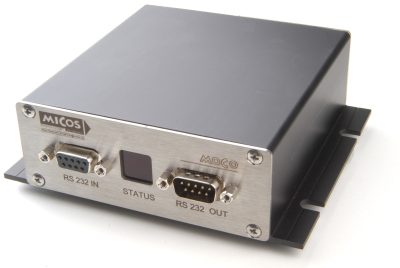

| Technical
data |
Axes |
1
axis, DC- motors brushed types |
Computer-Interface |
RS-232
up to 34.400 Baud |
Supply
Voltage |
24
VDC |
Phase
Currents |
=<3
A/phase |
Limit-Switches |
Positive
and negative limit switch input, additional ref.
switch inputs |
| |
Optically
isolated, wide voltage range |
Position
Counter |
32-bit
position control 2 000 000 000 steps in each
direction |
| |
with
software adjustment endless motion possible |
Program & Parameter |
EEPROM
for permanent storage of motion parameters and
programs |
Amplifier |
PWM
control of motor current for high efficiency |
Closed
loop |
Single-ended
or diff. encoder inputs, up to 1 MHz, index capability |
| |
|
Status
display |
Large,
two-digit LED for command address and error code
display |
| Housing |
Housing
Pocket-Desktop |
| Inputs |
4, pnp optoisolated |
Outputs
|
4, open-collector 0,5A 24 VDC
2, 0-5 V 8 Bit resolution
1, 0-5 V 8 Bit resolution |
| Options |
- Break Output
- Manual Control
- open frame version
|
| Software Interface |
LabVIEW™ VIs and demo application |
