Key features

	Single-axis DC-Motor Controller
	Cost effective, stand alone Controller
	Up to 16 MoCo DC can be combined with only one RS232 interf.
	With PID filtering
	PWM control of motor current for high efficiency
	Position, velocity and acceleration control
	Serial Interface RS-232 9600 KBaud
	On-board control language with over 50 commands
	24 VDC power supply (external)

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Technical data

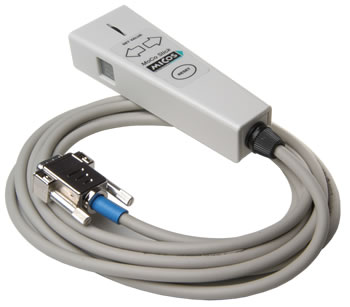

Single-axis DC-Motor Controller with keyboard control in ergonomic hand held housing
Sophisticated controller electronics with affordable price
Well-tried and reliable servo circuit for motor control
- PID filtering
- PWM current control
- Position, velocity and acceleration control
- Parameters adjustable by keyboard and permanent storage
- Motor continuous current up to 1.5 amps @ 24VDC

Options
- RS-232 / 9600 baud interface for coming up to 16 MoCo Sticks with one interface
- Goose-neck for assambling the controller directly at the stages

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MoCo Stick Ordering information
MoCo Stick	Order-No.
MoCo dc Handheld Controller	7805-9-010
Interface with cable and software	7805-9-020

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
