	6.005		Linear Stage AMT-65 S

Key features
	Travel range 25 mm
	Load capacity 16 kg
	Crossed-roller bearings
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	-Fy (N)	+Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
MM-010	70	80	10	160	20	35	20	70	40

D E S C R I P T I O N

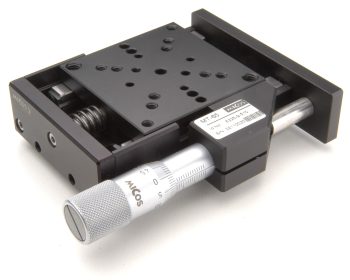

Manually driven Linear Stages AMT-65 S are suited for precision adjustment and manipulation of samples, optics and other test pieces. With crossed-roller bearings higher load capacity can be achieved. It results no stick-slip when positioning the slide. A pressure spring is operating with force of 10N (-Fy) against the micrometer screw. Higher forces can be compensated with help of an

exchange spring (max.80N) (included in delivery).The thread of the micrometer is hardened and ground. Manually driven Linear Stages AMT-65 S are supplied with a centrally or side mounted micrometer. With only little effort and without additional adapter the Linear Stages AMT-65 S can be assembled to XY-, XYZ systems.

Technical data
Travel Range (mm)	25
Accuracy (µm)	+/- 5
Straightness / Flatness (µm)	+/- 1
Pitch (µrad)	+/- 100
Yaw (µrad)	+/- 80
Micrometer Pitch (mm)	0.5

Scale Resolution (µm)
MM-010, Micrometer	10

Sensitivity (µm)
MM-010, Micrometer	1.2

Material	Special Alu, black anodized
Weight (kg)	0.55
Note: Motorized version capture, see page: 2.070 (Run Out Model: MT-65)

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

	AMT-65 S Knobs

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

AMT-65 S Base

Travel range

25 mm

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

AMT-65 S Ordering information
Linear Stage	Order-No.
AMT-65 S	6225-9-510

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
