6.006

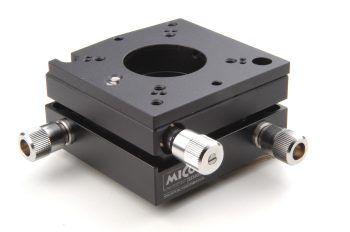

Prism Stage APS-XYR
Vacuum option
Key features
Rotation up to +/- 4°
Load capacity 0.3 kg
30 mm clear aperture
Button Download PDF data sheet ...
F A C T S
Load Characteristics
 FRx (N) FRy (N) FRz (N)
Finescrew 0.3 0.3 0.3



D E S C R I P T I O N
APS-XYR, 30 mm clear aperture

Prism Stage ASR-XYR are very compact prism stage. In addition to the integration into the proved optical modular system, ASR-XYR prism stages can be employed for many tasks of adjustment. Prism stages are offered with two pitch axes: ASR-XYR respectively with one additional rotation axis ASR-XYR. A clear aperture with diameter 30 mm makes many uses and working with microscopy possible.



Technical data
Travel Range

Rx, Ry (°)
+/- 4
Rz (°)
+/- 4
Bi-directional Repeatability (µm)
–
Leadscrew Pitch (mm)
0.35
Degree per turn (°/r)
Rx, Ry
0.3
Rz
0.8
Sensitivity (°)
Rx, Ry (°)
0.005
Rz (°)
0.005
Material
Special Alu, black anodized
Weight (kg)
0.22


MOTION CONTROL  Systems  Positioners  MiniPos  DirectDrives  Controllers  ManPos  Accessories  Vacuum  MAC PhotonX  M  A  C



APS-XYR Base & Knobs





MOTION CONTROL  Systems  Positioners  MiniPos  DirectDrives  Controllers  ManPos  Accessories  Vacuum  MAC PhotonX  M  A  C



APS-XYR Ordering information

Prism Stage
Order-No.
APS-XYR
4280-9-020
