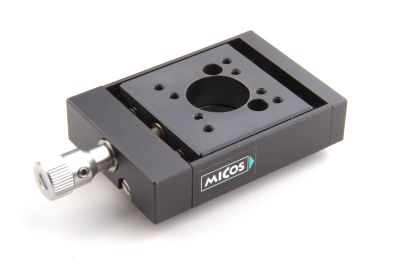

Linear Stage APT-38 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

	Page
	6.001		Linear Stage APT-38

Key features
	Travel range 5 mm
	Clear aperture 15 mm
	Fine pitch 0.25 mm
	Load capacity 5 kg
	Dove tail slide
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)
LD-010	30	10	50	3	3	3

D E S C R I P T I O N

The Positioning Stages series APT-38 are units which are especially designed for small translation and for space-limited setups. By a spring prestressed, fine thread screw this positioning stages are precisely adjustable. A dovetail slide integrated into case and slider functions as guiding mechanism.

The APT-38 series have a central aperture at a drilling diameter 15 mm. The Positioning Stages APT-38 are easily configured to XYZ assemblies. As required the individual components can be assembled or disassembled.

Technical data
Travel Range (mm)	5
Accuracy per 25 mm (µm)	+/- 10
Straightness / Flatness (µm)	+/- 5
Pitch (mrad)	1
Yaw (mrad)	1
Leadscrew Pitch (mm)	0.25

Sensitivity (µm)
Lead screw	+/- 2.5

Material	Special Alu, black anodized
Weight (kg)	0.15

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

PKT-38 Base & Knobs

Travel range

5 mm

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

APT-38 Ordering information
Linear Stage	Order-No.
APT-38	3211-9-100
