D
E S C R I P T I O N

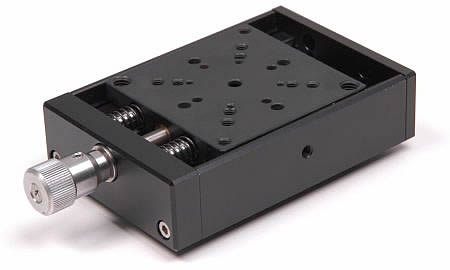

The
Linear Stage APT-65 is a low cost model
of a translation element with a travel range
of 25 mm. Equipped with fine thread screw that
runs upon two thrusts bearings to eliminate
backlash. The positioning stage can be moved
very sensitively. The dove tail slide is easily
adjusted, or as required, clamped with help
of double-end studs.
|
|
To
eliminate the reverse backlash of the fine
thread screw, there are two strong pressure
strings integrated inside the Positioning Stage
APT-65. XY and XYZ- manipulators are quickly
and easily mounted due to alignment dowels
in actuator and case.
|
