	2.240		Slit ASS 5E / Slit ADS 5E

Key features

		Clear aperture 5 mm

		High Resolution up to 0.00277 µm

		Maximum speed 0.8 mm/sec

		High-precision ball-bearings

		Special, tempered Aluminium

		Limit switches integrated

		Module combination
		Download PDF data sheet ...

D E S C R I P T I O N

Slit [options]

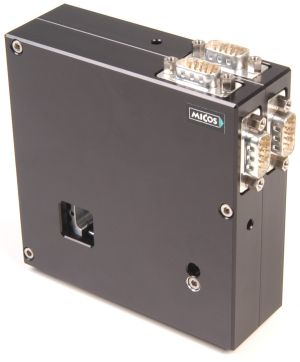

Slit and cross slits of the structural series ASS 5E and ADS 5E of MICOS are high quality instruments for industry and research especially in the field of laser application and radiotechnology. The slits are provided with a motor-driven aperture with maximum 5 mm aperture. With an aperture of 1 mm the slit can be positioned from the optical axes by +/- 2.5 mm without any correction.The slits are standard made from aluminium alloy or stainless steel. For high energetic radiation slits up to 3 mm thickness made from Wolfram, Titan or stainless stell are optionally offered. All slits are calibrated in pairs and lobed. The slits are driven alternatively by 2-phase-step motors or DC-motors. High-precision, selected prestressed recirculating ball screws guarantee a parallel opening and closing of the slits. In case of collision or damage the slits are protected by a safety clutch respectively a limit switch. By mounting two single slits one cross slit can be configured without problems.

S-451A / S-451R	[rear]

Slit jaws are not included in delivery but must be ordered separately.

Technical data
Travel Range (mm)	5
Bi-directional Repeatability (µm)	+/- 2
Uni-directional Repeatability (µm)	+/- 0.1
Accuracy per 5 mm (µm)	+/- 5
Velocity Range (mm/sec)	0.001 ... 0.8
Leadscrew Pitch (mm)	0.25

Speed max.(mm/sec)
DC-B-010	0.8
2Phase-010	0.25

Resolution Open-Loop (µm)
2Phase-010
single slit X	0.0274 (SMC) \| 0.274 (FS)
double slit XY	0.00137 (SMC) \| 0.0137 (FS)

Resolution Closed-Loop (µm)
RE-005, Rotary encoder feedback
single slit X	0.00554
double slit XY	0.00277

Current (Amps) / Voltage (Volts)
DC-B-010	0.32 \| 12
2Phase-010	1.2 \| -

Material	Special tempered Aluminium, black anodized
Weight (kg)	0.4
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning inserts, see Accessories page 7.030
