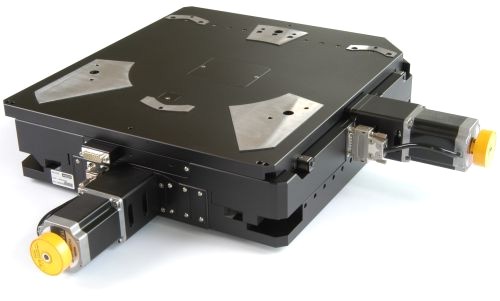

	2.204		Cross Stage CS-430

	Key features

			XY travel 350x300 mm

			Maximum speed 100 mm/sec

			Linear Scale

			Load capacity 30 kg

			Crossed-roller bearings

			Special, tempered Aluminium

			Limit switches integrated
			Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
2Phase-070	110	110	300	500	500	500	20	20

D E S C R I P T I O N

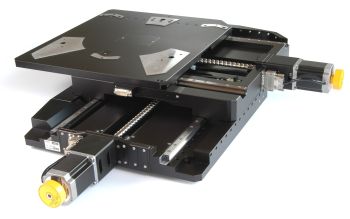

The Cross Stage CS-430 is employed for industrial test-, respectively inspection systems.The travel ranges XY are 350 x 300 mm. The XY-Stage CS-430 is equipped with recirculating ball screws with little backlash. All CS-430 Stages incorporate smooth running direct 2-phase-stepper motors. The scan stage is fitted out with two limit switches. For higher positioning accuracy and homogeneous speed thpe XY-Stage CS-430 can be optionally equipped with a length measuring system. The Cross Stage uses precision crossed-roller bearings for long life and increased load capacity. Two mechanical limit switches are firmly integrated in the XY stage. Optical and inductive limit switches as well as test and calibration certificates can be supplied on request.

Technical data
Travel Range (mm)	350x300
Bi-directional Repeatability (µm)	+/- 0.2 ... 8
Accuracy per 50 mm (µm)	+/- 0.4 ... 10
Velocity Range (mm/sec)	0.001 ... 100
Ballscrew Pitch (mm)	10

Speed max.(mm/sec)
2Phase-070	100

Resolution Open-Loop (µm)
2Phase-070	0.25 (SMC) \| 25 (FS)

Resolution Closed-Loop (µm)
LS-010, Linear steel scale	0.1

Current (Amps) / Voltage (Volts)
2Phase-070	2 \| -

Material	Special Aluminium, black anodized
Weight (kg)	23
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

CS-430 Base + Motors

Travel ranges

350 x 300 mm

2Phase-070

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

CS-430 Ordering information

2Phase-070	2

without LS-010 LS-010, Linear steel scale	0 1

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
