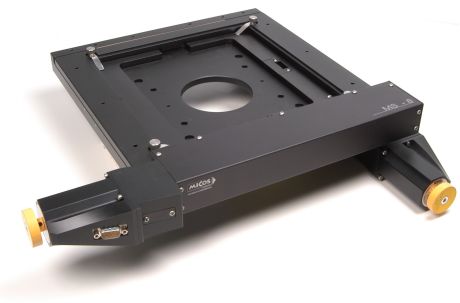

	2.210		Scan Table MS-8

Key features
	XY travel 205x205 mm (8"x 8")
	Clear aperture 205x205 mm
	Maximum speed 90 mm/sec
	Load capacity 4 kg
	Special, tempered Aluminium
	Limit switches integrated

Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-030	20	20	40	0.5	0.5	0.5	400	400
2Phase-033	20	20	40	0.5	0.5	0.5	400	400

D E S C R I P T I O N

The Scan Stage MS-8 is employed for industrial test-, respectively inspection systems in the range of research and development. Travel ranges XY are 205 x 205 mm (8" x 8"). Due to the flat structural shape the Scan Stage MS-8 is suited for tasks of reflected light and transmitted light microscopy. With the Scan Stage MS-8 samples with a dimension of 205 x 205 mm can be tested and measured. Accessories such as glass plates, adapter for Petri-dishes, Micro-titer disks and slides are offered.

The Scan Stage MS-8 is equipped with recirculating ball screws with little backlash. They guarantee a very quiet smooth move. Motor-driven variants such as DC- and 2-phase-micro-step (SMC-series) motors of MICOS are available. The scan stage is fitted out with two limit switches. For higher positioning accuracy and homogeneous speed the Scan Stage MS-8 can be optionally equipped with a length measuring system.

Technical data
Travel Range (mm)	205 x 205
Bi-directional Repeatability (µm)	+/- 0.2 ... 8
Accuracy per 50 mm (µm)	+/- 0.4 ... 10
Velocity Range (mm/sec)	0.001 ... 90
Ballscrew Pitch (mm)	2

Speed max.(mm/sec)
DC-B-030	90
2Phase-033	35

Resolution Open-Loop (µm)
2Phase-033	0.1 (SMC) \| 10 (FS)

Resolution Closed-Loop (µm)
RE-020, Rotary encoder feedback	0.1
LS-010, Linear scale	0.1

Current (Amps) / Voltage (Volts)
DC-B-030	1.1 \| 24
2Phase-033	1.2 \| -

Material	Special Aluminium, black anodized
Weight (kg)	9.5
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MS-8 Motors

DC-B-030		2Phase-033

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Travel ranges

205 x 205 mm

MS-8 Base

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MS-8 Ordering information

DC-B-030 2Phase-033		1 2

without LS-010 LS-010, Linear steel scale		0 1
