	5.060		MPA power amplifiers

D E S C R I P T I O N

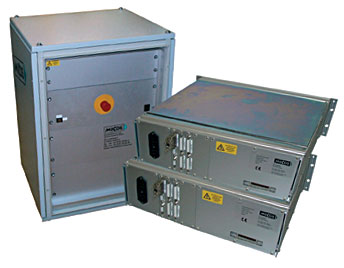

For the several PC-Slot controllers like FlexMotion, DMC add PMC-series, MICOS offers power-amplifiers, which fit very well to MICOS stages. The design of the system bases on standardized 19" rackmount housings, with all necessary devices integrated. All available signals of the controllers are breaked out to per axis specific DSub-connectors which fits to our motorcables. The controller-specific motion-indepen-dent signals like digital and analog I/O's are wired to additional connectors. We integrate several different amplifier-modules to meet the desired demands, mixed versions (different power/bus-voltage/drive-type/drive principle) are also available on request. The most sold types are the two servo-brush modules documented in this paper.

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Technical data (standard):
motortype:	DC-brush	DC-brush	2Phase direct-drive
amplifier princple	4-Q PWM torque-control	4-Q PWM torque-control	4-Q PWM torque-control
switch-frequence	50 kHz	--	20 kHz
bus-voltage	24 V	24 V	45 V \| 90 V
continues current	5 A	2 A	2.5 V \| 5 A
peak-current	10 A	3 A	5 A \| 10 A
analog-input	+/-10 V	+/-10 V	+/-10 V
	2-Phase Microstepping Board
bus-voltage	24 V
Phase current	1.5 A
Mode of operation	microstepping 250 x
Input	Pulse/Direction
Note: Other specifications on request

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MPA power amplifiers Ordering information

number axes	1 ... 4		n

amplifier		DC-brush 24 V 2A		0

		DC-brush 24 V 5A		1

		DC-brush 48 V 5A		2

		2-Phase microstep 24 V 1.5 A		3

		Amplifier for linear-motor 45 V 2.5A continuous		4

		Amplifier for linear-motor 45 V 5A continuous		5

interface		FlexMotion		0

		DMC		1

		DC2 pc		2
