Technical
data |
|
Power
supply:
|
4
x round cell LR6 (Alkaline ~ 2000 mAh) and portable
power supply
|
|
in:
|
100 – 240
V
|
out:
|
6
VDC with user-plug Ø 5.5/2.1 mm |
|

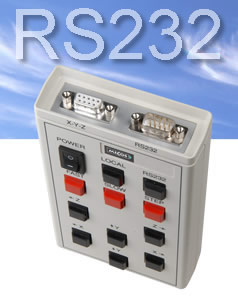

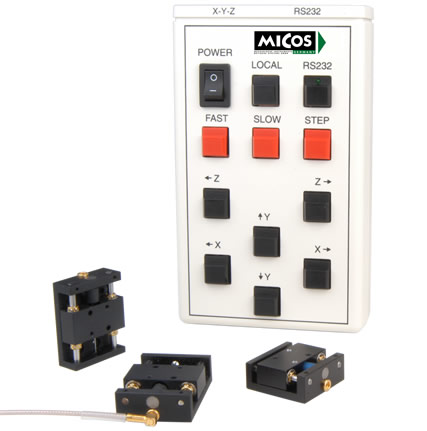

Operation
modes:
|
"Local” with
keyboard (current consumption ~ 20 µA)
|
|
“Remote” with
RS 232-Interface (current consumption ~6 mA incl.LED) |
|
|
change
switch for both modes on keyboard
|
|
Connections:
9pin Sub D-connector (male) 9pin Sub D-connector
(female) |
|
|
2pin
Socket (female)
|
|
Speed
modes:
|
“Fast” “Slow” (“Fast”/2) “ Single
step” |
|
|
RS
232-interface to the internal controller
|
|
Connection:
|
9pin
Sub D-connector (male) |
|
Data
rate:
|
19200
Baud
|
|
|
1.
Computer sends command |
|
|
2.
Execution of command through controller
|
|
|
3.
Controller reports execution Software for PC |
|
DOS,
W95, NT, 2k, XP
|
executable
software with action buttons (similar to the
stand-alone keyboard)
|
own
programs:
|
Borland
Pascal Unit (DOS) DLL for Windows |
|
Mass:
|
340
g incl. batteries
|
|
Dimensions:
|
157
x 99 x 39 mm |
|
Delivery
includes:
|
miniature
power supply
|
|
|
4
x round cell LR6 |
|
|
RS
232 connecting cable
|
