Key features

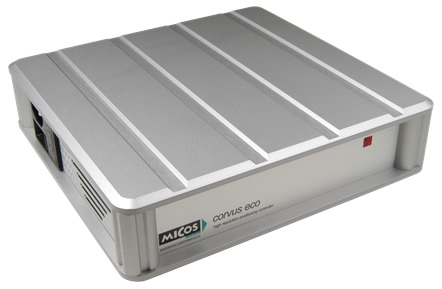

	2/3 Axes Microstep-Controller Desktop System
	2/3 Axes Microstep-Controller Desktop System
	High-Resolution-Microstep
	85--250V-AC input voltage (wordwide)
	133 MHz RISC Processor with Flash-Memory
	Velocity-range <0.1 µm/s with 1 mm pitch
	Linear Interpolation of all axes
	RS-232 115 KBaud / USB mini Standard
	Venus-1 compatible string-based command-language
	2/3 Axes Joystick
	Closed-Loop Mode RS422 / Vss
	Digital I/O
	Trigger Output
	Position-correction static
	Description, please looking on page 5.010
	Temperatur-sensor input
	Download PDF data sheet ...
	Download PDF manual winpos programm ...
	Download PDF manual ...
	Download PDF manual Venus1 ...
	Download PDF How to use LabVIEW VI's ...

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

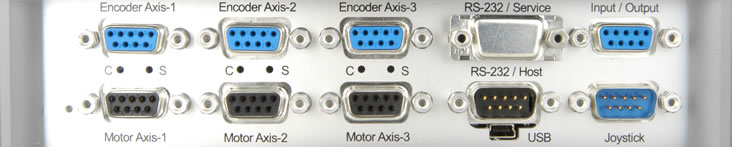

Technical data
Axes	3 or 2 Axes 2 phase stepper-motors
Computer-Interface	RS-232 and USB mini
Power-Configuration	85-250V-AC input voltage (worldwide)
Limit-Switshes	2 per axis software configurable
Trajectory mode	linear interpolation
Velocity-range	<0.1 µm ... 15 rev/s with (200 step motor)
Program & Parameter	Flash-Memory
Amplifier	24 V DC, with short-circuit & temperature protection
Phase-current:	max. 1.5 A
Housing	Desktop 65x225x216 mm [HxWxD]
Standard delivery includes:	Software CD, Manual as PDF, USB-drivers (Virtual ComPort VCP-drivers) Winpos-light user-interface, DLL-API Delphi/C++/VB examples, LabVIEW™ VI's and examples, RS-232 & USB cables, Power-cord US

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

SMC corvus eco Ordering information
SMC corvus eco		Order-No.
2 axes	Microstep Controller	7170-9-006
2 axes & Joystick	Microstep Controller	7170-9-008
3 axes	Microstep Controller	7170-9-007
3 axes & Joystick	Microstep Controller	7170-9-009

SMC corvus eco options		Order-No.
Closed Loop [TTL]	For quadrature encoders RS-422 per axis	7170-9-201
Closed Loop [Vss]	For sin/cos encoders Vss per axis	7170-9-202
Speed Upgrade	25 rev/sec. (200 fullstep)	7170-9-204
Digital I/O	Digital I/O 3x Inputs (5-24V) 3x Outputs (5-24V)	7170-9-203
Trigger-Out	Trigger-Out function	on request
StPCor	Static position-correction	on request
Winpos	Full version Software	on request
Brake Logic	Brake Logic for one axis	on request
