Rotation Stage, Rotary Positioner DT-50 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

GMBH • FREIBURGER STRASSE 30 • DE- 79427 ESCHBACH • PHONE + 49 7634 5057 230 • FAX + 49 7634 5057 393

	Key features

			Load capacity up to 1 kg

			Integrated reference switches

			Clear aperture 20 mm

			Rotation Range 360°, endless

			Speed up to 4000 °/sec

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
DC-B-029	5	10	5	0.15	150
2Phase-047	5	10	5	0.15	150
2Phase-042 (Pollux & Controller System)	5	10	5	0.15	150

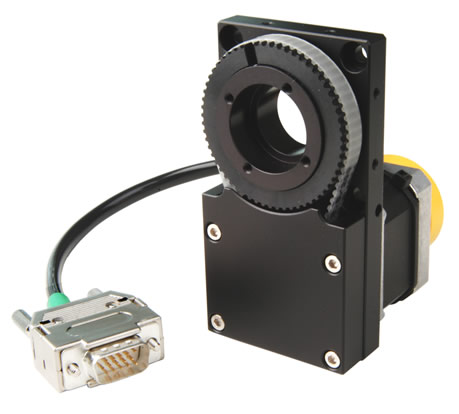

D E S C R I P T I O N	DT-50 - Clear aperture 20 mm

The NEW DT-50 rotation stages are a low cost and lower accuracy alternative to the MICOS RS-40 stage. The belt driven DT-50 rotation stage allows a much higher speed of rotation in comparison to other stages. The clear aperture of 20 mm diameter is suitable for many applications in the microscopy area. The belt driven combination is preloaded to produce near zero backlash and a smooth motion. DT-50 rotation stages are equipped with hall reference switches and are driven by a DC or 2-phase stepper motor.

Technical data
Rotation Range (°)	360, endless
Belt Drive Reduction	4:1
Accuracy (°)	+/- 0.4
Repeatability (°)	+/- 0.1
Reversal Error (°)	0.01
Velocity Range (°/sec)	0.001 ... 4000
Flatness (µm)	+/- 80
Eccentricity (µm)	+/- 30
Wobble (µrad)	+/- 100

Speed max. (°/sec)
DC-B-029	4000
2Phase-047	1100
2Phase-042	1500

Resolution Open-Loop (°)
DC-B-029	0.002
2Phase-047	0.0025 (SMC) \| 0.225 (FS)
2Phase-042	0.0025 (SMC) \| 0.45 (FS)

Resolution Closed-Loop (°)
RE-005, Rotary encoder feedback	0.002

Nominal Current (Amps) / Voltage (Volts)
DC-B-029	0.4 \| 24
2Phase-047	1.2 \| -
2Phase-042	1.2 \| -

Material	black anodized aluminium
Weight (kg)	0.8

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

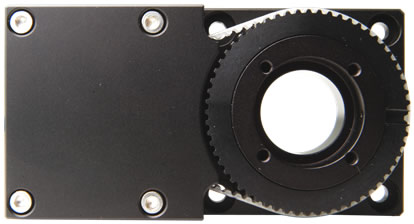

DT-50 Base

Rotation range

360°. endless

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

DT-50 Ordering information
Rotation Stage DT-50		Order-No.
DC-B-029, DC Motor	HLS-010, Hall switch	6435-9-1001
2Phase-047, 2SM Motor	HLS-010, Hall switch	6435-9-2001

Rotation Stage DT-50 with options		Order-No.
2Phase-042, 2SM SMC Pollux & Controller System	HLS-010, Hall switch	6435-9-3001
