	3.120		Piezo Positioner PP-30

Key features
	Travel range up to 30 mm
	Piezo driven step motor with low hysteresis
	Encoder Resolution 0.1 µm
	Maximum speed 2 mm/sec
	Load capacity 1 kg
	Holding force 4 N
	Ball bearings
	Special tempered Aluminium
	Ref. mark at the center of the linear scale

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)
PM-005	10	4	10	0.5	0.5	0.5

D E S C R I P T I O N

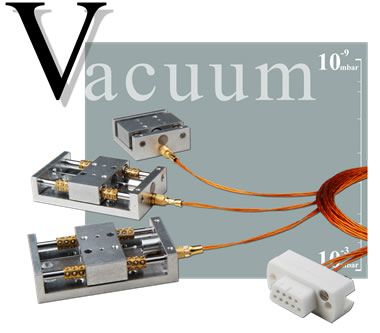

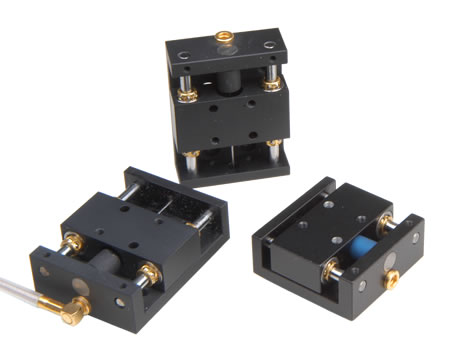

Piezo Positioner Stages PP-30 are suited for precise positioning of small parts in a variety of applications, such as Micro, Bio Technology, Microscopy, Quality control and R&D. PP-30 piezo stages operate in open or closed loop mode. Resolution up to 0.1 µm are available. Modules can be assembled to compact XY or XYZ – positioning systems. PP-30 is equipped with recirculating ball bearings. A piezo inertial motor (stick-slip) drives the stage without any backlash. Travel ranges of 8 mm, 18 mm and 30 mm are available. Customized designs for OEM is possible. These Piezo Positioner Stages are also available for vacuum and cryonic applications. More information on piezo motor positioners

Technical data
Travel Range (mm)	8	18	30
Bi-directional Repeatability (µm) (closed loop)	+/- 0.1
Uni-directional Repeatability (µm) (closed loop)	+/- 0.1
Accuracy per 5 mm (µm) (LS-010, Linear steel scale)	+/- 1
Velocity Range (mm/sec)	0.001 ... 2
Straightness / Flatness (µm)	+/- 0.7	+/- 1.5	+/- 3
Pitch (µrad)	+/- 60	+/- 80	+/- 100
Yaw (µrad)	+/- 120

Speed max. (mm/sec)
PM-005	2

Resolution Open-Loop (µm)
PM-005	100nm ( HS )
	200nm ( SS )
	400nm ( DS )

Resolution Closed-Loop (µm)
PM-005, LS-010 Linear scale	0.1

Electrical Data
PM-005
Supply voltage	5V ( +/- 10% )
Power Consumption	150 mA
Operating temperature	0° C … 50° C
Scanning frequency	max. 400 KHz
Vibration (50Hz … 2Hz)	< 200 ms-2
Shock (11 ms)	< 400 ms-2

Weight (kg)	0.15	0.2	0.25
Material	Aluminium
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Piezo Motors are available with travel ranges from 8 mm to 2 inches

PP-30

Travel ranges	A (mm)	B (mm)	C (mm)	D (mm)
18 mm	40	33	10	15
30 mm	52	45	16	21

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

PP-30 Ordering information
PP-30 Available Options, on request

Available Options:

Modul combination
Clean room
10-3 mbar up to 10-7 mbar
77K °C (open loop)
4K °C (open loop)
