Key features EcoLine in lightweight construction Clear aperture 40 mm Rotation Range 360°, endless Double row ball bearings Reference switches integrated Speed up to 45°/sec Load up to 2 kg Module combination Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
DC-B-029	10	20	5	0.1	150
2Phase-041	10	20	5	0.1	150

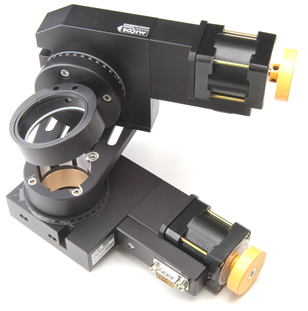

D E S C R I P T I O N The Rotation Stages DT-80 of the structural series 80 are a low cost alternative to the MICOS High-Precision-Rotation Stages DT-65 and PRS-110. They are mainly employed for simple positioning and enlarge the offer of our low cost translation stages of the structural series 80. The continuous aperture of 40 mm diameter is suitable for many applications in the range of microscopy. The screw worm, -gear wheel combination is prestressed with zero-backlash and produces a smooth move. Rotation stages of the structural series 80 directly driven by DC- and 2-phase-micro-step (SMC-series) motors are offered. Motorized rotation stages are equipped with a mechanical reference-limit switch. More Pictures ...



Technical data
Rotation Range (°)	360, endless
Worm gear reduction	180:1
Accuracy (°)	+/- 0.04
Repeatability (°) Uni-directional	+/- 0.008
Reversal Error (°)	0.01
Velocity Range (°/sec)	0.001 ... 45
Flatness (µm)	+/- 50
Eccentricity (µm)	+/- 30
Wobble (µrad)	+/- 100
Speed max. (°/sec)
DC-B-029	45
2Phase-041	30
Resolution Open-Loop (°)
2Phase-041	0.001 (SMC) | 0.01 (FS)
Resolution Closed-Loop (°)
DC-B-029, Rotary encoder feedback	0.001
Current (Amps) / Voltage (Volts)
DC-B-029	0.46 | 30
2Phase-041	1.7 | -
Material	black anodized
Weight (kg)	0.8
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see: Appendix



DT-80 Motor & Controller						VT-80 Motor & Controller
	Motor & Controller System with DT-80				Motor & Controller System with VT-80





DT-80 Base
				Rotation range 360°, endless





DT-80 Ordering information
					DC-B-029 2Phase-041 1 2
