Key features
	Single-axis Microstep-Controller System
	Stand-alone-system, or with integrated 2-Phase stepper motor
	High-Resolution-Microstep
	Up to 16 SMC pollux can be combined with only one RS232 interface
	DSP Controller Type
	Velocity-range 0.1 µm/sec up to 40 mm/sec (depends on controller-type and pitch)
	Serial Interface RS-232 - 19200 Baud
	Venus-2 compatible string-based command-language
	Windows TM User-Interface
	LabVIEW VI's
	NEW now available in High Torque HT
	NEW now available in Closed Loop CL
	24 VDC power supply (external)
	Ready to Upgrad [Soft Key Code] Typ I upto II

	Download PDF data sheet ... coming soon!
	Download PDF manual ...
	Download PDF manual Venus2 ...
	Download PDF How to use LabVIEW VI's ...

Motor & Controller System

SMC-series SMC pollux Closed Loop
NEW Pocket Desktop Closed Loop

Pocket Desktop

(Stand-alone-system)

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Technical data
Axes	1 axis, 2-phase stepper motors
Computer-Interface	RS-232 - 19200 Baud (fix)
Supply Voltage	24 VDC
Phase Currents	<=1.2 A/phase
Limit-Switches	2 per axis software configurable (npn)
Velocity range	<0.1 µm/s .. 13 rev/s (200 step motor) TYPE I - Ready to Upgrad [Soft Key Code] TYPE I upto TYPE II
	<0.1 µm/s .. 26 rev/s (200 step motor) TYPE II
	<0.1 µm/s .. 40 rev/s (200 step motor) TYPE III
Max. Resolution	300 000 positions/rev.
Max. linear resolution	1 nm
Program & Parameter	Flash-Memory
Amplifier	24V, with short-circuit & temperature protection
Phase-current	up to 1.2A
For the version with integrated 2-Phase stepper motor:
Motor torque	16 Ncm (Type I)
	16 Ncm (Type II)
	32 Ncm (Type III)
	100 Ncm (Type II) HT only available in Motor & Controller System NEW
Housing	Pocket-Desktop (without motor), or Motor & Controller System
Dimensions	HxWxD 48x56x97 mm (additional motor shaft 20 mm)
Description, please looking on page 5.010

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

SMC pollux Ordering information

SMC pollux Accessories	Order-No.
SMC pollux RS232 cable RJ45-RJ45, 1.8 m length to combine 2 pollux controller (SMCpollux Daisy-Chain RS232)	7160-9-526
SMC pollux RS232 cable RJ45-RJ45, 0.9 m length to combine 2 pollux controller (SMCpollux Daisy-Chain RS232)	7160-9-527
SMC pollux RS232 cable RJ45-RJ45, 0.5 m length to combine 2 pollux controller (SMCpollux Daisy-Chain RS232)	7160-9-528
SMC pollux RS232 cable RJ45-RJ45, 0.3 m length to combine 2 pollux controller (SMC pollux Daisy-Chain RS232)	7160-9-529
SMC pollux RS232 cable RJ45-RJ45, 1.8 m length to combine 2 pollux controller (SMC pollux Daisy-Chain RS232/Power)	7160-9-521
SMC pollux RS232 cable RJ45-RJ45, 0.9 m length to combine 2 pollux controller (SMC pollux Daisy-Chain RS232/Power)	7160-9-523
SMC pollux RS232 cable RJ45-RJ45, 0.5 m length to combine 2 pollux controller (SMC pollux Daisy-Chain RS232/Power)	7160-9-524
SMC pollux RS232 cable RJ45-RJ45, 0.3 m length to combine 2 pollux controller (SMC pollux Daisy-Chain RS232/Power)	7160-9-525
SMC pollux RS232 cable DSub9-RJ45, 3 m length for PC-connection	7160-9-520
SMC pollux power supply, 60W, 90-264 VAC	7160-9-522
SMC pollux Update I upto II	7160-9-540

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

O R D E R I N G E X A M P L E S M C P O L L U X D E S K T O P

power supply input RJ45-RJ45 & power RS232 cable DSub9-RJ45

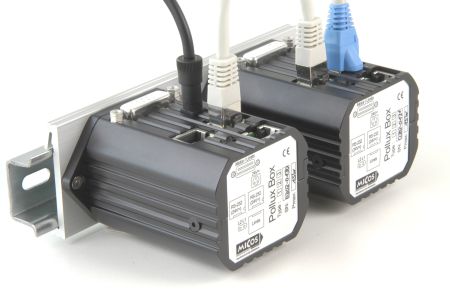

Pocket Desktop, 2 axes application

F O L LO W I N G S M C P O L L U X M O T O R & C O N T R O L L E R
A V A I L A B L E I N S T A N D A R D P R O D U C T S

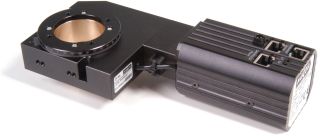

Motor & Controller System with DT-80

Motor & Controller System with SF-3000 LS

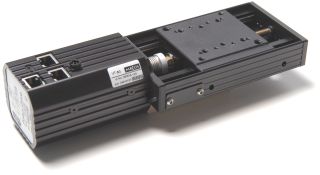

Motor & Controller System with VT-80
