Hexapod for Vacuum

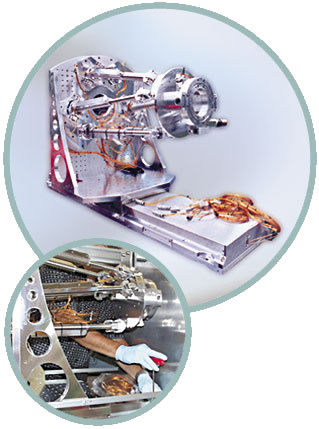

This system consists of a hexapod, a linear stage, and an additional tilting platform. This special arrangement was chosen to achieve a maximum of travel range within the limited space of the high vacuum chamber in which this system is used. The application is the angle- dependant characterization of superconducting high frequency detectors (far infrared, FIR) for astronomy. The travel range in x and y is +/- 180 mm with angles of +/- 20° at any position.

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

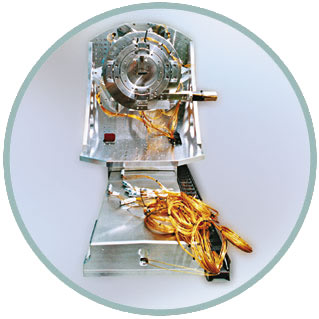

The linear stage allows a travel range of 800 mm in z direction.

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

	The absolute positioning errors of the hexapod have been measured (seefigure), and a special compensation software is able to reduce these errors by a factor of 20.
