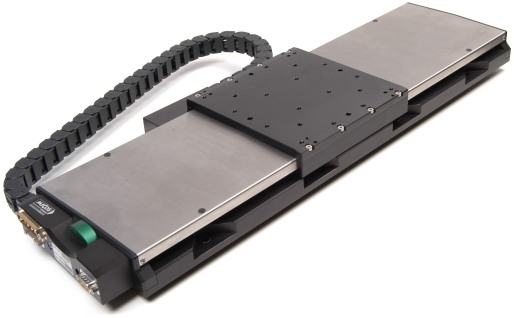

	4.010		Linear Motor Stage LMS-180

	Key features

			Linear motor

			Travel range up to 305 mm

			Maximum speed 400 mm/sec

			Load capacity up to 100 kg

			Bi-directional repeatability +/- 0.08 µm

			Linear recirculating ball system

			Special, tempered Aluminium

			Limit switches integrated

			Module combination
			Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N) (Peak)	Fy (N) (Con.)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
LM-010	450	176	50	450	65	120	65	80	60

D E S C R I P T I O N

Linear Motor Stages of the structural series LMS-180 and LMS-300 are mainly employed for modern electronic production and laser application. Combined with direct-driven Rotation Stages UPR of MICOS, high-dynamic, precise positioning systems can be configured resulting in an efficient production. Linear Stages LMS-180 and LMS-300 are driven by linear motors without iron. The linear measuring system with very high accuracy is installed between the guides. With this, a higher system accuracy can be achieved. Especially significant is a very quiet and dynamic smooth move. All Linear Stages of the structural series LMS-180 are equipped with inductive travel-limit switch and protection against damage.

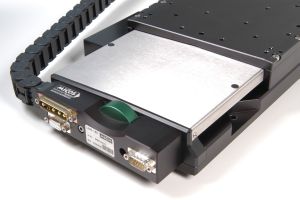

LMS-180 [detail]

Technical data
Travel Range (mm)	155	205	305	408
Bi-directional Repeatability (µm)	+/- 0.02 ... 2
Accuracy per 100 mm (µm)	+/- 1 ... 10
Velocity Range (mm/sec)	0.001 ... 400
Straightness / Flatness (µm)	+/- 3	+/- 6	+/- 8	+/- 10
Pitch (µrad)	+/- 80	+/- 100	+/- 120	+/- 140
Yaw (µrad)	+/- 100

Speed max. (mm/sec)
LM-010	400

Resolution Closed-Loop (µm)
LS-030, Linear glass scale (25-times interpolation)	0.08
Reference mark	center

Winding Constant
Force constant (Nm/Ams)	17
Back EMF constant, peak value V/(m/s)*	13.9
Electrical resistance at 80° (Ohm)*	7.39
Electrical inductance (mH)*	1.81
Continuous current at 80° (Ams)	1.5

Material	Special Aluminium, black anodized
Weight (kg)	-	-	-	-
Note: * Terminal to terminal

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LMS-180 Base + Motors

Travel ranges	A (mm)	B (mm)
155 mm	235	470
205 mm	260	520
305 mm	310	620
408 mm	360	720

LM-010

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LMS-180 Ordering information

LM-010	1

155 mm (6") 205 mm (8") 305 mm (12") 408 mm (16")		1 2 3 4

LS-010, Linear steel scale LS-020, Linear glass scale		1 2
