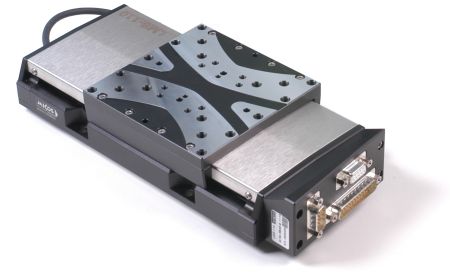

	4.008		Linear Motor Stage LMS-110

Key features
	Linear motor
	Travel range up to 155 mm
	Maximum speed 200 mm/sec
	Load capacity 5 kg
	Bi-directional repeatability +/- 0.2 µm
	Linear recirculating ball system
	Special, tempered Aluminium
	Limit switches integrated
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N) (Peak)	Fy (N) (Con.)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
LM-005	25	20	6	50	30	60	33	100	70

D E S C R I P T I O N

Linear Motor Stages of the structural series LMS-110,
LMS-180 and LMS-300 are mainly employed for modern electronic production and laser application. Combined with directly driven Rotation Stages of MICOS high-dynamic precise positioning systems can be configured resulting in an efficient production. Linear Stages LMS-110 are driven by linear motors without iron. They are controlled by closed loop modus. The linear measuring system with very high accuracy is installed between the guides. Especially significant is a very quiet and dynamic smooth movement. All Linear Stages of the structural series LMS are equipped with inductive travel-limit switch and protection against damage. Note: Linear Stage LS-110 is similar to LMS-110 (similar design) but LS-110 is equipped with recirculating ball screw (no linear motor) and DC,- stepper motor. Please see page 2.054

LMS-110 26 & 52 mm

Technical data
Travel Range (mm)	26	52	102	155
Bi-directional Repeatability (µm)	+/- 0.2
Accuracy per 25 mm (µm)	+/- 0.25
Velocity Range (mm/sec)	0.001 ... 200
Straightness / Flatness (µm)	+/- 1.5	+/- 1.5	+/- 2.5	+/- 3
Pitch (µrad)	+/- 30	+/- 40	+/- 60	+/- 70
Yaw (µrad)	+/- 40

Speed max. (mm/sec)
LM-005	200

Resolution Closed-Loop (µm)
LM-010, Linear steel scale	0.1	higher resolution on request

Winding Constant
Force constant (Nm/Ams)	3.7
Back EMF constant (peak value) V/(m/s)*	-
Electrical time constant (ms)*	0.35
Electrical inductance (mH)*	-
Continuous current at 80° (Ams)	-

Material	Special Aluminium, black anodized
Weight (kg)

Note: * Terminal to terminal

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LMS-110 Motors + Base

		LM-005

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LMS-110 Ordering information

	LM-005	1

	26 mm (1") 52 mm (2") 102 mm (4") 155 mm (5")	1 2 4 5

	LS-010, Linear steel scale	1
