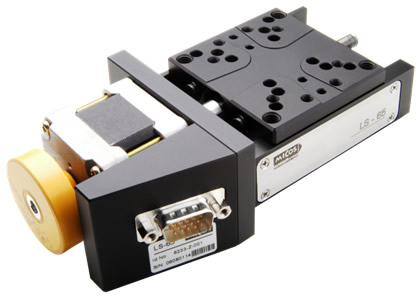

Linear Stage LS-65 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

Key features
	Travel range up to 102 mm (4")
	Maximum speed 10 mm/sec
	Linear recirculating ball system
	Special tempered aluminum
	Load up to 3 kg
	Limit switches integrated
	Module combination

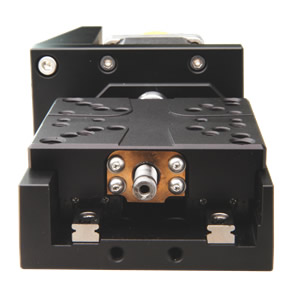

D E S C R I P T I O N	LS-65 front view

Special characteristic of the NEW Linear Stage LS-65 linear stage is its compact structural shape. Typical applications for this measuring stage are inspection and micro-mounting systems for laser diodes and other highly sensitive components. A motionless precision ground leadscrew with 1mm pitch (option 0.4 mm pitch) guarantees a quiet, smooth move. The LS-65 linear stages are standardly equipped with a recirculating ball guiding sytem. LS-65 linear stages are alternatively equipped with a DC- or 2-phase-micro-step motor (SMC-technology). The LS-65 linear stages are standardly equipped with two optical or mechanical limit switches.

Technical data
Travel Range (mm)	26	52	77	102
Bi-directional Repeatability (µm)	+/- 5
Accuracy (µm)	10
Velocity Range (mm/sec)	0.001 ... 10
Straightness / Flatness (µm)	+/- 4	< +/- 5	< +/- 6	< +/- 7
Pitch (µrad)	+/- 50	< +/- 60	< +/- 70	< +/- 80
Yaw (µrad)	+/- 60
Ballscrew Pitch (mm)	1 \| 0.4

Speed max. (mm/sec)
DC-B-024	8 \| 4
2Phase-045	10 \| 4

Resolution Open-Loop / 1 mm pitch (µm)
2Phase-045	0.1 (SMC) \| 5 (FS)

Resolution Closed-Loop / 1 mm pitch (µm)
RE-010, Rotary encoder	0.5	higher resolution on reqest!

Nominal Current (Amps) / Voltage range (Volts)
DC-B-024	0.98 \| 24
2Phase-045	1.2 \| -

Material	Special Alu, black anodized
Weight (kg)	0.6	0.7	0.8	0.9
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix
