	2.104		Elevation Stage ES-65

Key features
	Travel range up to 26 mm (1")
	Maximum speed 20 mm/sec
	Load capacity 2 kg
	ball-bearings
	Limit switches integrated
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-031	30	30	15	2	2	2	300	300
2Phase-032	30	30	20	2	5	5	300	300
2Phase-045	30	30	20	2	5	5	300	300

D E S C R I P T I O N

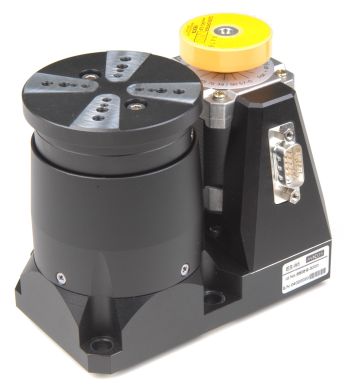

Special characteristic of the Lifting Stage ES-65 is its very compact structural shape. The module is suitable for the precise positioning of light construction parts. A DC- or a 2-phase-micro-step (SMC-series) is available for the drive. Standardly the Elevation Stage ES-65 is equipped with two mechanical limit switches.

Technical data
Travel Range (mm)	26
Bi-directional Repeatability (µm)	+/- 5
Uni-directional (µm)	+/- 0.3
Accuracy (µm)	+/- 10
Velocity Range (mm/sec)	0.001 ... 20
Straightness / Flatness (µm)	+/- 8
Pitch (µrad)	+/- 400
Yaw (µrad)	+/- 400
Ballscrew Pitch (mm)	1

Speed max. (mm/sec)
DC-B-031	20
2Phase-032	12
2Phase-045	12

Resolution Open-Loop / 1 mm pitch (µm)
2Phase-032	0.125 (SMC) \| 2.5 (FS)
2Phase-045	0.25 (SMC) \| 2.5 (FS)

Closed-Loop (µm)
DC-B-031, Rotary encoder	0,25

Nominal Current (Amps) / Voltage range (Volts)
DC-B-031	2 \| 24
2Phase-032	1.2 \| -
2Phase-045	1.2 \| -

Material	Special-Alu, black anodized
Weight (kg)	1.1
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix
