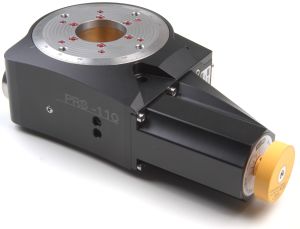

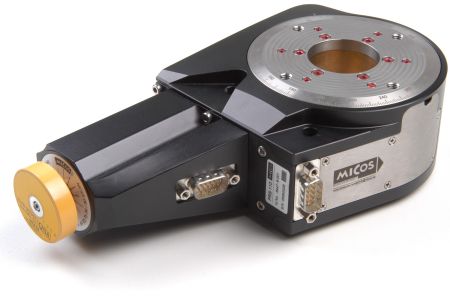

	2.124		Precision Rotation Stage PRS-110

	Key features

			Clear aperture 35 mm

			Direct driven

			Repeatability 0.0004°

			Angular scale feedback

			Preloaded worm drive for zero-backlash

			Hardened worm and gear drive

			Two high precision four-point bearings

			Precise, smooth continuous 360° motion

			Speed up to 200°/sec

			Load up to 10 kg

			Module combination

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
DC-B-041	50	100	40	3	30
2Phase-033	50	100	40	3	30

D E S C R I P T I O N

The Precision Rotation Stages PRS-110 are mainly applied in the range of industrial measuring technique, vision control, micro-laser application, automation systems, robotic and for semiconductor technology. The body is fabricated from a special, high-rigidity, tempered Al-alloy. Two calibrated prestressed four-point double rows without backlash guarantee a small wobble respectively smallest deviations of flatness and eccentricity. A hardened and ground screw worm combined with a calibrated gear wheel guarantees an optimal quiet smooth move. The Precision Rotation Stages PRS-110 without backlash are delivered by PRS-110 Precision Rotation Stages can be MICOS equipped with optical angular systems. Resolutions up to 0.0002 are standard offered. The Precision Rotation Stages PRS-110 are equipped with a limit-, reference switch. Additionally contactless limit switches can be mounted. Drive variants such as DC-, 2-phase-micro-step (SMC-series) motors are available.

Technical data
Rotation Range (°)	360, endless
Worm gear reduction	90:1
Accuracy (°)	+/- 0.006 ... 0.02
Repeatability (°) / Uni-directional	+/- 0.0002 ... 0.002
Reversal Error (°)	0.0004 ... 0.01
Velocity Range (°/sec)	0.002 ... 200
Flatness (Bearings) (µm)	+/- 2.5
Eccentricity (µm)	+/- 2.5
Wobble (µrad)	+/- 15

Speed max. (°/sec)
DC-B-041	200
2Phase-033	75

Resolution Open-Loop (°)
2Phase-033	0.002 (SMC) \| 0.02 (FS)

Resolution Closed-Loop (°)
RE-010, Rotary encoder	0.002
AE-050, Angular scale (50-times interpolation)	0.0002

Current (Amps) / Voltage (Volts)
DC-B-041	3.8 \| 24
2Phase-033	1.2 \| -

Material	Special-Alu, black anodized/stainless steel AISI 303 (rotary platform)
Weight (kg)	2.6
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

PRS-110 Motors

	DC-B-041	2Phase-033

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

PRS-110 Base

Rotation range

360°, endless

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

PRS-110 Ordering information

	DC-B-041 2Phase-033		1 2
	DC-B-041 2Phase-033		1 2

	without AE-050 AE-050, Angular scale	0 1

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

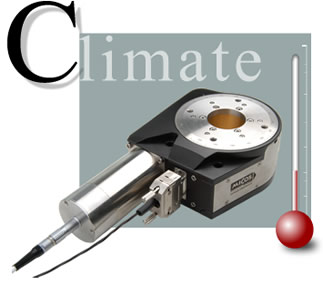

	PRS-110 c l i m a t e
	The PRS-110 Rotary Stage is modified to a wide temperature range form –80° Celsius upto +20° Celsius. We did the test in a climatic chamber. The PRS-110 Rotary Stage was tested in –80°C with a speed of 8°/second. please get in contact with us ...
