| 1.008 |

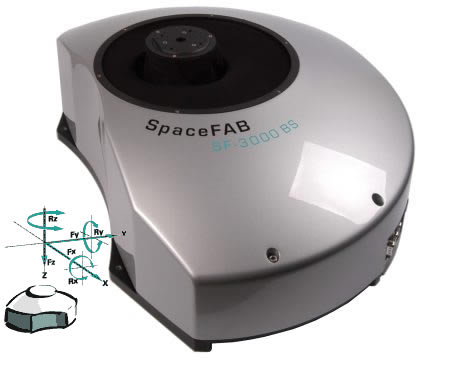

SpaceFAB SF-3000
BS
|
|
|
| F
A C T S |
| Load
Characteristics |
Fx
(N) |
Fy
(N) |
Fz
(N) |
Rx
(Nm) |
Ry
(Nm) |
Rz
(Nm) |
| DC-B-031 |
6 |
5 |
20 |
0.2 |
0.2 |
0.2 |
| 2Phase-033 |
6 |
5 |
20 |
0.2 |
0.2 |
0.2 |
D
E S C R I P T I O N
With
one SpaceFAB SF-3000 BS all
six degrees of freedom can be degrees of
freedom can be moved without additional
positioning elements. The low weiht of
the moving platform allows high-dynamic
positioning processes. The non pre-loaded
desingn can easily carrry up to 2 kg enter
monted. SpaceFAB SF-3000 BS is
operating in closed loop mode.
|
|
S
O F T W A R E
|
| Calculation
of motion path with collision dedection |
Pivot
point can be set by the customer
|
Graphic
display of the robot from any view
|
Digital
display of position and orientation
|
|
Control
by Macro-language stored in own editor
|
|
Control
by 3D-space-mouse possible
|
Jog
mode
|
|
| Technical
data |
Travel
Range
|
| X,
Y (mm) |
50
x 12.7
|
| Z
(mm) |
100
|
| Rx,
Ry (°) |
10
|
| Rz
(°) |
10
|
| Velocity
Range (mm/sec) |
0.01
... 10
|
| Velocity
Range (°/sec) |
0.01
... 10
|
|
| Bi-directional
Repeatability (µm) |
|
| X,
Y |
+/-
0.5
|
| Z |
+/-
0.5
|
|
| Bi-directional
Repeatability (µrad) |
|
| Rx,
Ry |
+/-
20
|
| Rz |
+/-
20
|
|
| Speed
max. (mm/sec) |
|
| DC-B-031 |
|
| X,
Y (mm/sec) |
30
|
| Z
(mm/sec) |
30
|
| Rx,
Ry (°/sec) |
10
|
| Rz
(°/sec) |
10
|
|
| Speed
max. (mm/sec) |
|
| 2Phase-033 |
|
| X,
Y (mm/sec) |
20
|
| Z
(mm/sec) |
20
|
| Rx,
Ry (°/sec) |
8
|
| Rz
(°/sec) |
8
|
|
| Resolution
(without load) |
|
| X,
Y (µm) |
0.25
|
| Z
(µm) |
0.25
|
| Rx,
Ry (^°) |
0.0005
|
| Rz
(°) |
0.0005
|
| Material |
|
| Weight
(kg) |
24
|
Note: Fore
more detailed informations, please
contact us...
For turned key solutions, please
contact us...
The travel range is depending on the position of the pivot point. |
|
|
|
| |
SpaceFAB
SYSTEMS |
|
| |
|
 |
|
|
|
|
standard
face to face |
|
|
|
platform
with fix mounted ring |
|
|
| |
 |
|
|
|
| SpaceFAB
FS-3000 BS Ordering
information |
|
|
|
|
|
 |
|
 |
|
| |
|
|
| |
platform
standard
platform
with fix
mounted ring
|
0
1
|
|
|
| |
|
|
| |
|
|
|
|
SF-3000

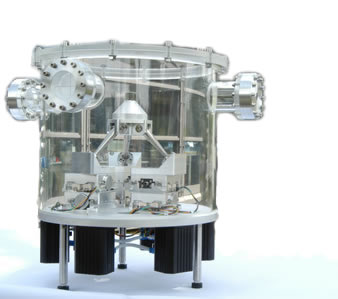

vacuum SpaceFAB {demo}
|
- Six
axes micro robot system
- Low
profile system
- Travel
ranges linear 12.7x12.7x10 mm
- Travel
ranges rotation Rx, Ry, Rz 10 °
- Load
capacity 1 kg center mounted
- Automatic
alignment
- Pivot
point can be set by the customer
- Can
be used by any modern programming software
- Including
software, controller and amplifiers
- Cross
roller bearings
- Special,
tempered Aluminum
- Clean
room and vacuum chamber capable
- more
details...
|
|
|
|
