	1.online		SpaceFAB SF-3000 BS vacuum

Key features

		Six axes micro robot system

		Compact, low profile system

		Travel ranges linear 50x12.7x100 mm

		Travel ranges rotary Rx, Ry, Rz 10°

		Load capacity 2 kg center mounted

		Automaic alignment

		Alignment routines for arrayed fibers & components

		High dynamic

		Pivot Point set by user anywhere in the space

		User friendly software

		Can be used by any modern programming language

		Including software, controller and amplifiers
		Download PDF data sheet ...

Get URL report INFN

or Download

INFN LABORATORI NAZIONALI DI FRASCATI
PROJECT AND MANUFACTURING OF A HIGH-VACUUM,
SIX-AXES MICROMANIPULATOR FOR LOWTEMPERATURE
SPECTROSCOPY

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Rx (Nm)	Ry (Nm)	Rz (Nm)
	6	5	20	0.2	0.2	0.2

D E S C R I P T I O N

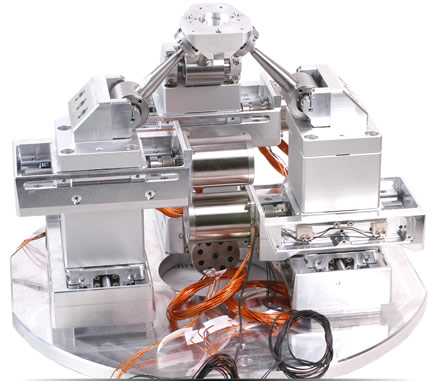

With one SpaceFAB SF-3000 BS vacuum all six degrees of freedom can be degrees of freedom can be moved without additional positioning elements. The low weiht of the moving platform allows high-dynamic positioning processes. The non pre-loaded desingn can easily carrry up to 2 kg enter monted. SpaceFAB SF-3000 BS vacuum is operating in closed loop mode.

S O F T W A R E

Calculation of motion path with collision dedection

Pivot point can be set by the customer

Graphic display of the robot from any view

Digital display of position and orientation

Control by Macro-language stored in own editor

Control by 3D-space-mouse possible

Jog mode

Technical data
Travel Range
X, Y (mm)	50 x 12.7
Z (mm)	100
Rx, Ry (°)	10
Rz (°)	10
Velocity Range (mm/sec)	0.01 ... 10
Velocity Range (°/sec)	0.01 ... 10

Bi-directional Repeatability (µm)
X, Y	+/- 0.5
Z	+/- 0.5

Bi-directional Repeatability (µrad)
Rx, Ry	+/- 20
Rz	+/- 20

Speed max. (mm/sec)
DC-B-031
X, Y (mm/sec)	30
Z (mm/sec)	30
Rx, Ry (°/sec)	10
Rz (°/sec)	10

Speed max. (mm/sec)

X, Y (mm/sec)	20
Z (mm/sec)	20
Rx, Ry (°/sec)	8
Rz (°/sec)	8

Resolution (without load)
X, Y (µm)	0.25
Z (µm)	0.25
Rx, Ry (^°)	0.0005
Rz (°)	0.0005
Material
Weight (kg)	24
Note: Fore more detailed informations, please contact us. For turned key solutions, please contact us. The travel range is depending on the position of the pivot point
