	4.004		Ultra Precision Stage UPS-150

Key features
	Linear motor
	Travel range up to 305 mm (12")
	Long-time stability
	Smooth running
	Repeatability +/- 0.1 µm
	Linear scale centrally mounted
	Load capacity in lifetime
	Maximum speed 600 mm/sec
	Crossed-roller bearings
	Strength stress-relieved aluminium
	Load capacity up to 50 kg
	20.000 hour MTBF
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N) (Peak)	Fy (N) (Con.)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
LM-010	400	88	22	500	100	200	100	5	3

See our New Series of Direc Drive Linear Motor Stages with Nanometer Precision

D E S C R I P T I O N

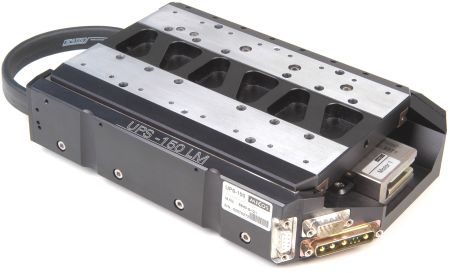

The Ultra Precision Linear Motor Stage UPS-150 is related to the UPM-160, and especially designed for high performance, ultra high precision applications in Wafer Surface Inspection, Fiber Alignment, High Precision Robotics and for all tasks where a maximum of positioning accuracy, precision, speed and reliability is absolutely necessary. All Ultra Precision Linear Motor, Direct Drive Stages of the UPS-150 series are equipped with a linear measuring encoder system centrally located between the linear guides. Due to high-quality crossed-roller bearings a maximum load capacity and smooth travel and motion is guaranteed. A special, stress free, tempered Al-alloy body guarantees a homogeneous non-warping structure. The structural series 150 are driven by linear ironless motors and provide high acceleration and high velocity and speed. System accuracy of less than 1µm/100mm respectively, bi-directional repeatability of 0.1µm is guaranteed.

See our New Series of Direc Drive Linear Motor Stages with Nanometer Precision

Additionally contactless limit switches can be mounted. The positioning accuracy of the structural series 150 is only guaranteed with PI MICOS motion controllers. The UPS-150 Ultra High Precision Linear Motor Stages are supplied calibrated and come with a certificate for flatness, straightness, pitch, yaw & position accuracy). The measurement is made mounted and unloaded on granite with a flatness better than 1µm.

See our New Series of Direc Drive Linear Motor Stages with Nanometer Precision

UPS-150 [detail]

Technical data
Travel Range (mm)	55	105	155	205	305
Bi-directional Repeatability (µm)	+/- 0.1
Accuracy per 50 mm (µm)	+/- *0.25 ... 0.5
Velocity Range (mm/sec)	0.001 ... 600
Straightness / Flatness (µm)	< +/- 0.5	< +/- 0.75	< +/- 1	< +/- 1.25	< +/- 1.75
Pitch (µrad)	< +/- 15	< +/- 20	< +/- 25	< +/- 30	< +/- 40
Yaw (µrad)	< +/- 20

Speed max. (mm/sec)
LM-015	600

Resolution Closed-Loop (µm)
LS-010, Linear steel scale	0.1
LS-020, Linear glass scale	0.005 ... 0.1

Reference mark	center

Winding Constant
Force constant (Nm/Ams)	22
Back EMF constant,( peak value) V/(m/s)**	-
Electrical resistance at 80° (Ohm)**	-
Electrical inductance (mH)*	-
Continuous current at 80° (Ams)	-

Material	Special Aluminium, anodized
Weight (kg)	-	-	-	-	-
Note: =Two point slope correction *=Terminal to terminal

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

UPS-150 Base + Motors

Travel ranges	A (mm)	B (mm)	C (mm)	D (mm)
55 mm	151	188	83	27.5
105 mm	201	238	108	52.5
155 mm	251	288	133	77.5
205 mm	301	338	158	102.5
305 mm	401	438	208	152.5

LM-015

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

UPS-150 Ordering information

	LM-015	1

	52 mm (2") 102 mm (4") 155 mm (6") 205 mm (8") 305 mm (12")	1 2 3 4 5
	LS-010, Linear steel scale LS-020, Linear glass scale	1 2

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
