Key features Linear motor Travel range 40 mm Maximum speed 200 mm/sec Load capacity 2.5 kg Bi-directional repeatability +/- 0.2 µm Linear recirculating ball bearings Special, tempered Aluminium Inductive limit switches integrated Module combination Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N) (Peak)	Fy (N) (Con.)	Fz (N)	Mx (N)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
LM-005	50	6	25	100	3	6	3	10	7

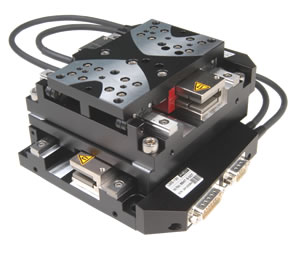

D E S C R I P T I O N	LMS-120 [XY setup]
Linear Motor Stages LMS-120 is mainly employed for modern electronic production and laser application. Combined with directly driven Rotation Stages of MICOS high-dynamic precise positioning systems can be configured resulting in an efficient production. Linear Stages LMS-120 are driven by linear motors without iron. They are controlled by closed loop modus. The length measuring system with very high accuracy is installed between the guides. Especially significant is a very quiet and dynamic smooth move. The Linear Stages LMS-120 is equipped with inductive travel limit switches and protection against damage.



Technical data
Travel Range (mm)	40
Bi-directional Repeatability (µm)	+/- 0.2
Accuracy per 25 mm (µm)	+/- 0.25
Velocity Range (mm/sec)	0.01 ... 200
Straightness / Flatness (µm)	+/- 2
Pitch (µrad)	+/- 50
Yaw (µrad)	+/- 40
Speed max. (mm/sec)
LM-005	200
Resolution Closed-Loop (µm)
LS-010, Linear steel scale	0.1
Winding Constant
Force constant (Nm/Ams)	3.7
Back EMF constant (peak value) V/(m/s)*	-
Electrical time constant (ms)*	0.35
Electrical inductance (mH)*	-
Continuous at 80° (Ams)	-
Material	Special-Alu, black anodized
Weight (kg)	1.3



LMS-120 Base & Motors		Travel ranges A (mm) B (mm) 40 mm 57.5 115
			LM-005





	LMS-120 Ordering information
				LM-005   1         40 mm   1 LS-010, Linear steel scale 1
