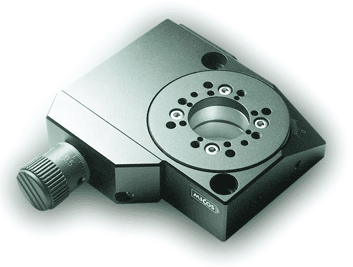

Rotation Stage ADT-65 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

	Page
	6.006		Rotation Stage ADT-65

Key features
	Clear aperture 25 mm
	Preloaded worm drive for zero-backlash
	High precision four point-bearings
	Precise, smooth continuous 360° motion
	Load up to 10 kg
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
Manual	50	100	20	5	45

D E S C R I P T I O N

Rotation Stages ADT-65 are perfectly suited for simple precision positioning of samples and test pieces. They are the manual variant to our proved motorized driven rotation stages of MICOS . Rotation Stages ADT-65 are equipped with a high-precision, prestressed four point bearing.

The drive is made by a screw worm-gear wheel and a turning knob with a 100 scale line. Rotation Stages ADT-65 are suited for vertical and horizontal use. With only little effort they can be configured together with other MICOS components to systems.

Technical data
Rotation Range (°)	360, endless
Worm Gear reduction	180:1
Reversal Error (°)	+/- 0.005
Flatness (µm)	+/- 6
Eccentricity (µm)	+/- 6
Wobble (µrad)	+/- 20

Resolution (°)
Knob	0.02
Scale platform	1

Sensitivity (°)	0.01

Material	Special Alu, black anodized
Weight (kg)	0.5

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

ADT-65 Knobs

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

ADT-65 Base

Rotation range

360°, endless

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

ADT-65 Ordering information
Rotation Stage	Order-No.
ADT-65	6441-9-600
