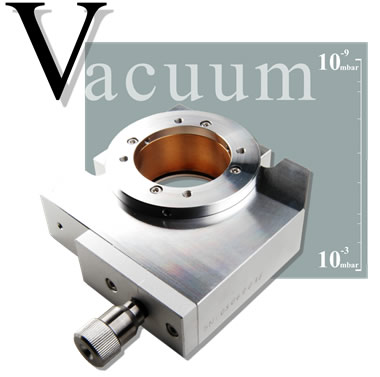

	6.006		Rotation Stage ADT-80

Key features
	EcoLine in lightweight construction
	Clear aperture 40 mm
	Rotation range 360°, endless
	Double row ball bearings
	Load up to 4 kg
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fz (N)	Mx (Nm)	Mz (Nm)	ka (µrad/Nm)
Manual	20	40	5	0.6	150

D E S C R I P T I O N

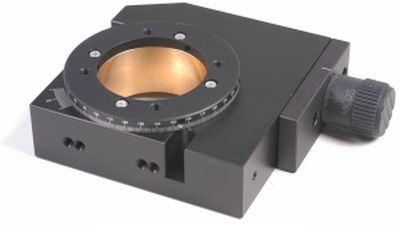

Rotation Stages ADT-80 are suited for simple positioning of light samples, optics or other test pieces. Compared with the proved motorized driven rotation and translation stages EcoLine of MICOS, they are a low-cost manual variant. Rotation Stages ADT-80 are equipped with a prestressed wire ball bearing. The drive is made by a spring prestressed screw worm-gear wheel with a translation of I = 180:1. Due to a free center hole of 40 mm working with transmitted light microscopy is possible. Manual adjustment is made by a turning knob with a 100 scale line. Rotation Stages ADT-80 are suited for vertical and horizontal use.With only little effort Rotation Stages ADT-80 of the structural series EcoLine can be configured together with other MICOS components to systems.

Technical data
Rotation Range (°)	360, endless
Worm Gear reduction	180:1
Repeatability (°)	+/- 0.008
Reversal Error (°)	0.01 ... 2
Flatness (µm)	+/- 10
Eccentricity (µm)	+/- 10
Wobble (µrad)	+/- 100

Resolution (°)
Knob	0.02
Platform	1

Sensitivity (°)
Manual	0.01

Material	black anodized
Weight (kg)	0.45
