	6.000		Linear Stage AVT-65

Key features
	Travel range 5 mm
	30 mm clear aperture
	Dove tail slide
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)
LD-010	20	20	40	30	30	30

D E S C R I P T I O N

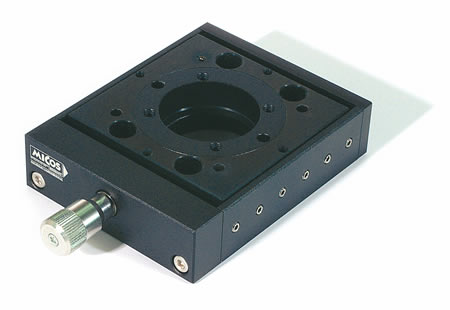

Special characteristic of the Linear Stage AVT-65 is its very compact structural shape. The module is suitable for the precise positioning of light construction parts. The translation is made with a Leadscrew LD-010. Resolutions up to 10µm can be achieved.

Technical data
Travel Range (mm)	5
Accuracy per 25 mm (µm)	+/- 10
Straightness / Flatness (µm)	+/- 5
Pitch (mrad)	1
Yaw (mrad)	1
Leadscrew Pitch (mm)	0.25

Sensitivity (µm)
Lead screw	+/- 2.5

Material	Special Alu, black anodized
Weight (kg)	0.45
