Key features Travel range 25 mm 25 mm clear aperture Load capacity 3 kg Linear ball-bearings Module combination Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	+Fy (N)	-Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
MM-010	30	30	30	0	2	2	2	300	300

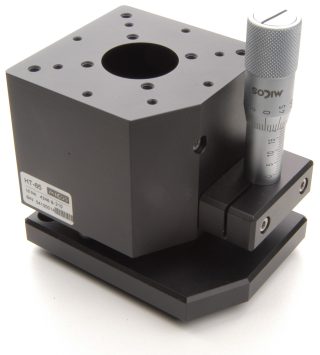

D E S C R I P T I O N	AHT-65, 25 mm clear aperture
Special characteristic of the Elevation Stage AHT-65 is its very compact structural shape. The module is suitable for the precise positioning of light construction parts. The translation is made with a Micrometer MM-010. Resolutions up to 10µm can be achieved.



Technical data
Travel Range (mm)	25
Bi-directional Repeatability (µm)	–
Accuracy per 10 mm (µm)	+/- 5
Velocity Range (mm/sec)	–
Straightness / Flatness (µm)	+/- 1.5
Pitch (µrad)	+/- 400
Yaw (µrad)	+/- 400
Micrometer Pitch (mm)	0.5
Resolution (µm)
MM-010, Micrometer	10
Sensitivity (µm)
MM-010, Micrometer	2
Material	Aluminium, black anodized
Weight (kg)	0.9





AHT-65 Base & Knobs
	Travel range 25 mm





AHT-65 Ordering information
Elevation Stage	Order-No.
AHT-65	4246-9-210
