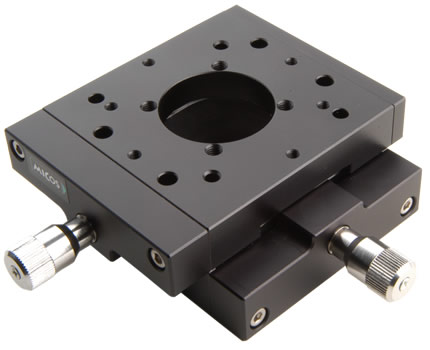

	6.000		Cross Stage AKT-65

Key features
	Travel range 5 mm X & Y
	Load capacity 4 kg
	Dove tail slide
	30 mm clear aperture
	Module combination
	Download PDF data sheet ...

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)
LD-010	20	20	40	30	30	30

D E S C R I P T I O N

Special characteristic of the Cross Stage AKT-65 is its very compact structural shape. The module is suitable for the precise positioning of light construction parts. The translation is made with a Finscrew LD-010. Resolutions up to 350µm can be achieved.

Technical data
Travel Range (mm)	5 x 5
Bi-directional Repeatability (µm)	–
Accuracy per 25 mm (µm)	+/- 10
Velocity Range (mm/sec)	–
Straightness / Flatness (µm)	+/- 10
Pitch (µrad)	+/- 400
Yaw (µrad)	+/- 400
Leadscrew Pitch (mm)	0.35

Resolution (µm)
LD-010, Lead screw	350

Sensitivity (µm)
LD-010, Lead screw	3.5

Material	Special Alu, black anodized
Weight (kg)	0.7

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

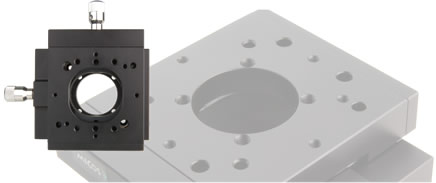

AKT-65 Base & Knobs
