Key
features |
|
|
|
|
|
 |
|
Clear
aperture 120 mm |
|
|
|
|
|
|
|
Repeatability
0.001° |
|
|
|
|
|
|
|
Angular
scale |
|
|
|
|
|
|
|
Preloaded
worm drive for zero-backlash |
|
|
|
|
|
|
|
High
precision double row ball bearings |
|
|
|
|
|
|
|
Precise,
smooth continuous 360° motion |
|
|
|
|
|
|
|
Speed
up to 50°/sec |
|
|
|
|
|
|
|
Load
up to 40 kg |
|
|
|
|
|
|
|
Module
combination |
|
 |
|
Download
PDF data sheet ... |
|
|
|
|
|
|
 |
|
|
|
 |
|
|
| F
A C T S |
|
|
|
|
|
|
Load
Characteristics
|
Fx
(N) |
Fz
(N) |
Mx
(Nm) |
Mz
(Nm) |
ka
(µrad/Nm) |
| DC-B-041 |
150 |
400 |
50 |
2.5 |
1 |
|
|
150 |
400 |
50 |
2.5 |
1 |
| |
D
E S C R I P T I O N

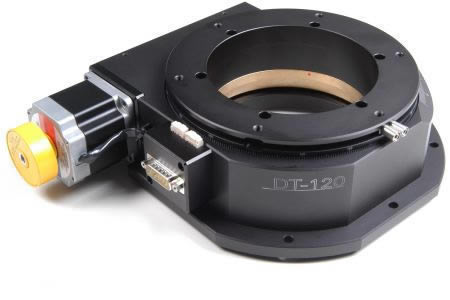

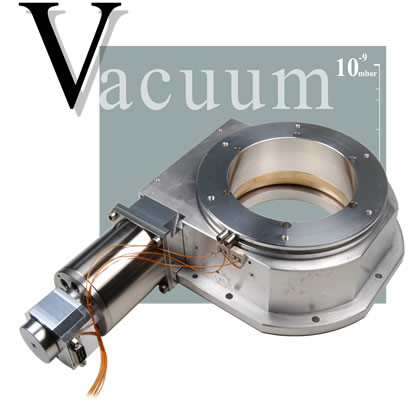

The
Rotation Stages DT-120 are
mainly applied in the range of industrial
linear,
vision control,
micro-laser application and for high-precision
micro-handling. Especially significant is
the large free centre hole diameter 120 mm
of the
rotation stages of the structural series
DT-120. The
body is fabricated from a special, high-rigid,
tempered AI-alloy. Two calibrated prestressed
zero backlash precision-roller bearing couples
guarantee smallest deviations of flatness
and smooth
move. A
hardened and ground screw worm combined with
a calibrated gear wheel guarantees a quiet
smooth move. DT-120 with zero-backlash
are delivered by MICOS. Standard
the Rotation Stages DT-120 are equipped
with two limit-, reference switches. The
limit switch switch points can be user-friendly
free
configured. Drive variants such as DC- or
2-phase-micro-step (SMC-series) motors are
available.
|
 |
| |
| Technical
data |
|
| Rotation
Range (°) |
360,
endless
|
| Worm
gear reduction |
320:1
|
| Accuracy
(°) |
+/-
0.003 ... 0.02
|
| Repeatability
(°) |
+/-
0.001 ... 0.002
|
| Reversal
Error (°) |
0.01
|
| Velocity
Range (°/sec) |
0.001
... 50
|
| Flatness (µm) |
+/-
8
|
| Eccentricity (µm) |
+/-
8
|
| Wobble
(µrad) |
+/-
80
|
|
|
| Speed
max. (°/sec) |
|
| DC-B-041 |
50
|
| 2Phase-070 |
15
|
|
| Resolution
Open-Loop (°) |
|
| 2Phase-070 |
0.0005625
(SMC) | 0.005625 (FS)
|
|
|
| Resolution
Closed-Loop (°) |
|
| RE-010,
Rotary encoder feedback |
0.0005625
|
|
|
| Current
(Amps) / Voltage (Volts) |
|
| DC-B-041 |
3.8
| 24
|
| 2Phase-070 |
2.8
| -
|
|
|
| Material |
Special
Aluminium, black anodized
|
| Weight
(kg) |
8
|
|
Note: (SMC):
Micro-Step Mode, (FS): Full-Step 2/5Phase
More
info: Detailed information, concerning
the motor and connectors, see: Appendix
|
|
