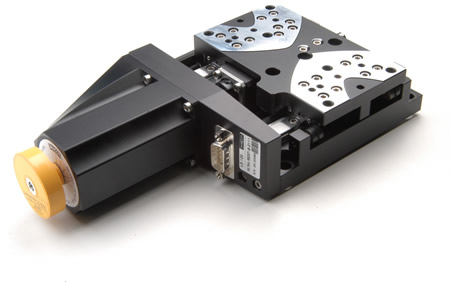

	2.056		Linear Stage LS-120

	Key features

		Travel range 40 mm (1.5")

		Maximum speed 90 mm/sec

		Load capacity 10 kg

		Bi-directional repeatability +/- 0.2

		Linear recirculating ball system

		Special, tempered Aluminium

		Limit switches integrated

		Module combination

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-031	50	80	100	30	60	33	50	40
2Phase-032	50	80	100	30	60	33	50	40

D E S C R I P T I O N

Special characteristic of the Linear Stage LS-120 is its tough structural shape. All important parts are fabricated from a highrigid, tempered AI-alloy. Linear Translation Stages of the structural series LS-120 are mainly suited for industrial laser treatment. The Linear Translation Stage is driven by a recirculating ball screw with 2 mm pitch. Linear guidance systems with recirculating linear ball bearings guarantee a very high guiding stiffness. The Linear Translation Stage LS-120 can be used in any fitting position whatever. For demanding positioning tasks the Linear Translation Stages LS-120 are supplied with a lateral arranged length measuring system which is centrally installed between the guide. Then the operation is running in closed-loop modus. The Linear Translation Stages LS-120 can be equipped with a 2-phase-micro-step (SMC-series) motor. Mechanical limit switches are integrated in the Linear Translation Stage.

Technical data
Travel Range (mm)	40
Bi-directional Repeatability (µm)	+/- 0.2 ... 3
Accuracy per 25 mm (µm)	+/- 1 ... 1.5
Velocity Range (mm/sec)	0.001 ... 90
Straightness / Flatness (µm)	+/- 1.5
Pitch (µrad)	+/- 40
Yaw (µrad)	+/- 40
Ballscrew Pitch (mm)	2

Speed max. (mm/sec)
DC-B-031
2Phase-032	35

Resolution Open-Loop (µm)
2Phase-032	0.2 (SMC) / 10 (FS)

Resolution Closed-Loop (µm)
RE-010, Rotary encoder	1
LS-010, Linear steel scale	0.1

NominalCurrent (Amps) / Voltage (Volts)
DC-B-031	2 \| 24
2Phase-032	1.2 \| -

Material	Special-Alu, black anodized
Weight (kg)	2.6
Note: (SMC): Micro-Step Mode, (FS): Full Step 2Phase More info: Detailed information, concerning motor and connectors, see: Appendix Linear Translation Stage LMS-120 (similar design) but equipped with linear motor. Please see page 4.006

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LS-120 Motors
DC-B-031		2Phase-032

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

LS-120 Base

Travel ranges	A (mm)	B (mm)
40 mm	57.5	131.5

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Linear Stage LS-120 Ordering information
