| F
A C T S |
|
|
|
|
|
|
|
|
| Load
Characteristics |
Fx
(N) |
Fy
(N) |
Fz
(N) |
Mx
(Nm) |
My
(Nm) |
Mz
(Nm) |
kax
(µrad/Nm) |
kay
(µrad/Nm) |
| DC-B-031 |
50 |
80 |
100 |
30 |
60 |
33 |
50 |
40 |
2Phase-033 |
50 |
80 |
100 |
30 |
60 |
33 |
50 |
40 |
| 2Phase-045 |
50 |
80 |
100 |
30 |
60 |
33 |
50 |
40 |
| D
E S C R I P T I O N

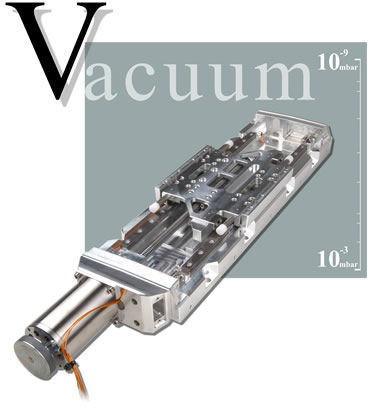

Special
characteristic of the Linear
Stage LS-110 is its
tough structural shape. All important
parts are fabricated from a highrigid,
tempered AI-alloy. Linear stages of
the structural series LS-110 are mainly
suited for industrial laser treatment.
The Linear Stage is driven by a recirculating
ball screw with 2 mm pitch. Linear
guidance systems with recirculating
linear ball bearings guarantee a very
high guiding stiffness. The Linear
Stage LS-110 can be used in any fitting
position whatever. For demanding positioning
tasks the Linear Stages LS-110 are
supplied with a lateral arranged length
measuring system which is centrally
installed between the guide. Then the
operation is running in closed-loop
modus. The Linear Stages LS-110 can
be equipped with a DC, 2-phase-micro-step
(SMC-series) motor. Mechanical limit
switches are integrated in the linear
stage.
|
|
| Technical
data |
|
|
|
|
|
|
|
|
| Travel
Range (mm) |
26
|
52
|
77
|
102
|
155 |
190 |
255 |
305 |
| Bi-directional
Repeatability (µm) |
+/-
0.2 ... 2
|
|
|
|
|
|
|
|
| Accuracy
per 25 mm (µm) |
+/-
1 ... 1.5
|
|
|
|
|
|
|
|
| Velocity
Range (mm/sec) |
0.001
... 90
|
|
|
|
|
|
|
|
| Straightness
/ Flatness (µm) |
+/-
1
|
+/-
1.5
|
+/-
2
|
+/-
2.5
|
+/-
3 |
+/-
3.5 |
+/-
4 |
+/-
5 |
| Pitch
(µrad) |
+/-
30
|
+/-
40
|
+/-
50
|
+/-
60
|
+/-
70 |
+/-
80 |
+/-
90 |
+/-
100 |
| Yaw
(µrad) |
+/-
40
|
|
|
|
|
|
|
|
| Ballscrew
Pitch (mm) |
2
|
|
|
|
|
|
|
|
|
| Speed
max. (mm/sec) |
|
|
|
|
|
|
|
|
| DC-B-031 |
90
|
|
|
|
|
|
|
|
| 2Phase-033 |
35
|
|
|
|
|
|
|
|
| 2Phase-045 |
35 |
|
|
|
|
|
|
|
|
| Resolution
Open-Loop (µm) |
|
|
|
|
|
|
|
|
| 2Phase-033 |
0.2
(SMC) / 10 (FS)
|
|
|
|
|
|
|
|
| 2Phase-045 |
0.2
(SMC) / 10 (FS) |
|
|
|
|
|
|
|
|
| Resolution
Closed-Loop (µm) |
| RE-010,
Rotary encoder |
1
|
|
|
|
|
|
|
|
| LS-010,
Linear steel scale |
0.1
|
|
|
|
|
|
|
|
|
| NominalCurrent
(Amps) / Voltage (Volts) |
| DC-B-031 |
2
| 24
|
|
|
|
|
|
|
|
| 2Phase-033 |
1.2
| -
|
|
|
|
|
|
|
|
| 2Phase-045 |
1.2
| - |
|
|
|
|
|
|
|
|
| Material |
Special-Alu,
black anodized
|
| Weight
(kg) |
2.6 |
2.7 |
2.8 |
2.9 |
3.1 |
3.1 |
3.5 |
|
Note: (SMC):
Micro-Step Mode, (FS): Full Step 2Phase
Linear Stage LMS-110 (similar design) but equipped with linear
motor. Please
see page 4.008 |
|
|
|
|
|
|
|
| LS-110
Base |
|
|
Travel
ranges
|
A
(mm)
|
B
(mm)
|
|
26
mm
|
112.5
|
225
|
|
52
mm
|
125
|
250
|
|
77
mm
|
137.5
|
275
|
| 102
mm |
150 |
300 |
| 155
mm |
180 |
360 |
| 190
mm |
180 |
360 |
| 255
mm |
215 |
430 |
|
305
mm
|
240
|
480
|
|
|
|
|
|
| LS-110 Ordering
information |
|
| |
 |
|
|
DC-B-031
2Phase-033
2Phase-045 |
1
2
3 |
| |
26
mm
52 mm
77 mm
102 mm
155 mm
190 mm
255 mm
305 mm
|
(1")
(2")
(3")
(4")
(6")
(10")
(12") |
|
1
2
3
4
5
6
7
8 |
| |
without
LS-010
LS-010 |
0
1* |
|
MLS-020,
Mechanical
limit switches |
0 |
| |
|
|
|
| * Remark: 190, 255 and 305mm travel range only available in open loop! |
|
|
