Micro Actuator MA-35 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

	Page

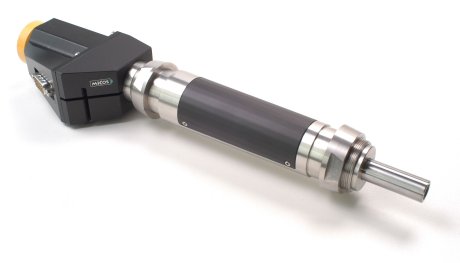

	3.056		Micro Actuator MA-35

Key features
	Travel range 52 mm (2")
	High Resolution up to 0.01505 µm
	Recirculating ball screw
	Ball bearings
	Maximum speed 60 mm/sec
	Force max. 20 kg
	Limit switches integrated

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-013	10	200	10	-	-	-	-	-
DC-B-031	10	30	10	-	-	-	-	-
2Phase-021	10	200	10	-	-	-	-	-
2Phase-032	10	50	10	-	-	-	-	-
2Phase-045	10	50	10	-	-	-	-	-
Note: *Carrier option factor 10 / (c) = Carrier

D E S C R I P T I O N

The Micro Actuator MA-35 is a slim linear drive which is mainly suited for applications with limited space conditions or where high-precision actuators must be positioned decoupled of the drive. Motorized Actuators MA-35 are standardly offered with DC-motor-gear encoder and 2-phase motor-gear combination or as direct drive DC-2 encoder or phase stepper motor combination. The motorized drives can be combined with a ground prestressed recirculating ball screw with 1mm or 2mm pitch.Depending on requirement high pressure forces, high resolution, dynamic and speed can be achieved. Micro Actuator MA-35 is fitted out with a hardened lobed prestressed high-precision ball bearing. So an optimal smooth move is guaranteed. The travel range amounts to 52 mm (2“). Two integrated mechanical- or as an option optical limit switches prevent damage from accidental overtravel. All function elements are made from respectively stainless steel.

Technical data
Travel Range (mm)	52
Bi-directional Repeatability (µm)	+/- 1
Uni-directional Repeatability	+/- 0.1
Accuracy (µm)	+/- 5
Velocity Range (mm/sec)	0.001 ... 60
Ballscrew Pitch (mm)	1 \| 2

Speed max. (mm/sec)
DC-B-013	2.5 \| 4
DC-B-031	50 \| 100
2Phase-021	1.5 \| 2.5
2Phase-032	20 \| 35
2Phase-045	20 \| 35

Resolution Open-Loop / 1 mm pitch (µm)
2Phase-021	0.3125 \| 0.625
2Phase-032	5 \| 10
2Phase-045	0.3 (SMC) \| 0.6 (SMC)

Resolution Closed-Loop / 1 mm pitch (µm)
RE-005, DC-B-013,Rotary encoder	0.01647 \| 0.03294
RE-005, DC-B-013,Rotary encoder	0.5 \| 1

Current (Amps) / Voltage (Volts)
DC-B-013	0.4 \| 24
DC-B-031	2 \| 24
2Phase-021	1.2 \| -
2Phase-032	1.2 \| -
2Phase-045	1.2 \| -

Material	Specia-Alu, black anodized
Weight (kg)	2.0

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MA-35 Motors

DC-B-013	DC-B-031	2Phase-021	2Phase-032	2Phase-045

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

	MA-35 Base

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MA-35Ordering information

	DC-B-013 DC-B-031 2Phase-021 2Phase-032 2Phase-045		1 2 3 4 5
	DC-B-013 DC-B-031 2Phase-021 2Phase-032 2Phase-045		1 2 3 4 5

		52 mm (2")	1

		pitch / 1 mm mech limit pitch / 2 mm mech limit pitch / 1 mm / hall limit pitch / 2 mm / hall limit	0 1 2 3
			0 1 2 3
