Key features Travel range 26 mm (1") Integrated linear encoder Backlash-free ball srew Non roating tip Maximum speed 25 mm/sec Force max. 20 N Limit switches integrated Manual adjustment knob 20.000 hours MTBF

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-025	*1	30	*1	(c) 0.1	(c) 0.2	(c) 0.1	20	15
2Phase-026	*1	30	*1	(c) 0.1	(c) 0.2	(c) 0.1	20	15
Note: *Carrier option factor 10 / (c) = Carrier



D E S C R I P T I O N

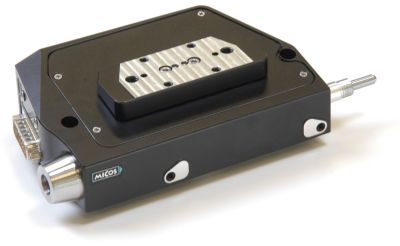

With the Nano Pusher NP-40 manual drives can be replaced by motor drives. Furthermore it is an ideal component for limited space conditions. Alternatively the NP-40 can be equipped with a carrier. Small structural parts like optical fibers, fiber arrays, objectives can be very precisely positioned. Small light structural parts such as mirrors and diodes can be directly mounted to carrier. The Nano Pusher NP-40 is equipped with a ground zero-backlash recirculating ball screw for a quiet precise and homogeneous smooth move. Resolutions up to 0,1 µm (SMC-series) are achieved. No rotation when running-in and running-out. Nano Pusher NP-40 are offered with DC or 2-phase-direct drive motor. Nano Pusher NP-40 with DC-motor is standard equipped with a length measuring system. Operation with a 2-phase-step motor can be made in open-loop (without linear encoder) or in closed-loop (with linear encoder).



Technical data
Travel Range (mm)	26
Bi-directional Repeatability (µm)	+/- 0.2 ... 2
Accuracy (µm)	+/- 0.4 ... 5
Velocity Range (mm/sec)	0.001 ... 25
Ballscrew Pitch (mm)	1
Carrier mounted
Accuracy (µm)	+/- 0.25
Straightness / Flatness (µm)	+/- 1
Pitch (µrad)	+/- 30
Yaw (µrad)	+/- 30
Speed max. (mm/sec)
DC-B-025	25
2Phase-026	15
Resolution Open-Loop (µm)
2Phase-025	0.2 (SMC) | 10 (FS)
Resolution Closed-Loop (µm)
LS-010, Linear steel scale	0.1
Current (Amps) / Voltage (Volts)
DC-B-025	1 | 24
2Phase-026	1.2 | -
Material	Special tempered Aluminium , black anodized
Weight (kg)
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase





NP-40 Motors
DC-B-025		2Phase-026





NP-40 Base



NP-40 Ordering information
					DC-B-025 2Phase-026 1 2
						26 mm (1") 1
					without LS-010 LS-010, Linear steel scale 0 1
					without carrier with carrier 0 1
