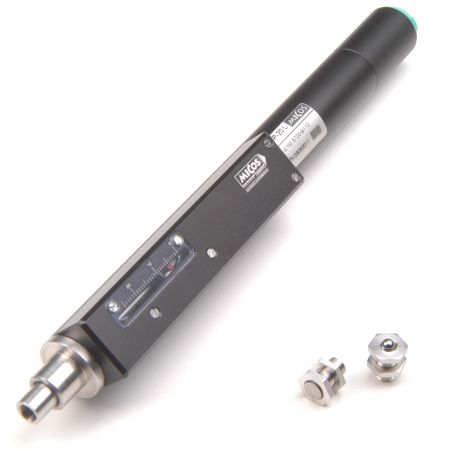

	3.060		Micro Pusher MP-20 L

Key features
	Travel range up to 75 mm
	High Resolution up to 0.02216 µm
	Recirculating ball screw
	*Maximum speed 3.5 mm/sec
	Force max. 12.5 kg
	Limit switches integrated
	Module combination
	Including both Inserts MP-B & MP-F

F A C T S
Load Characteristics	Fx (N)	+/- Fy (N)	Fz (N)
DC-B-010	1	125	1
2Phase-010	1	125	1

D E S C R I P T I O N

With the Micro Pusher MP-20 L manual drives can be replaced by motor drives. Furthermore it is an ideal component for limited space conditions. Small light structural parts such as mirrors and diodes can be directly mounted to the point. The Micro-Pusher MP-20 L is equipped with a ground, zero-backlash recirculating ball screw for a quiet precise and homogeneous smooth move. Resolutions up to 0,1µm (SMC-series) are achieved. No rotation when running-in and running-out.Micro-Pushers MP-20 L are offered with DC-gear, 2-phase-gear or 2-phase-direct drive motor. Alternatively crowned or flat ground inserts can be screwed in at the point.

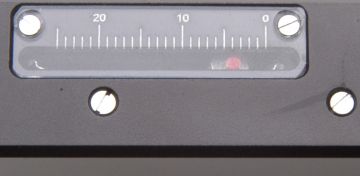

MP-20 L [scale]

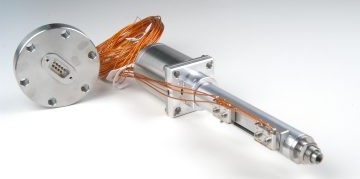

MP-20 L UHV modification

Technical data
Travel Range (mm)	25	50	75
Bi-directional Repeatability (µm)	+/- 2
Uni-directional Repeatability (µm)	+/- 0.1
Accuracy (µm)	+/- 5	+/- 6	+/- 8
Velocity Range (mm/sec)	0.001 ... 20
Ballscrew Pitch (mm)	1

Speed max. 1 mm pitch (mm/sec)
DC-B-010	3.5
2Phase-010	0.8

Resolution Open-Loop (µm)
2Phase-010	0.054902 (SMC) \| 0.54902 (FS)

Resolution Closed-Loop (µm)
RE-010, Rotary encoder feedback	0.02216

Current (Amps) / Voltage (Volts)
DC-B-010	0.32 \| 12
2Phase-010	0.25 \| -

Material	Aluminium, black anodized
Weight (kg)	0.2	0.23	0.25

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning inserts, see Accessories page 7.030 Remark: *Maximum speed 20 mm/sec on request, please call us ...

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-20 L Motors


	DC-B-010	2Phase-010

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-20 L Base

Travel ranges	A (mm)	B (mm)	C (mm)
25 mm	196	168	98
50 mm	221	193	123
75 mm	246	218	148

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-20 L Ordering information
MP-20 L Ordering information	DC-B-01 2Phase-010		1 4
	DC-B-01 2Phase-010		1 4

		25 mm 50 mm 75 mm		1 2 3

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
