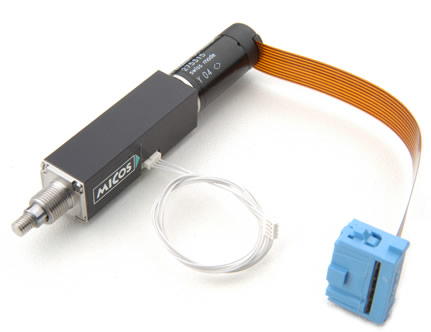

Precision Linear Actuator Micro Pusher MP-10 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

Key features
	Travel range up to 25mm
	Stepper motor with Micro Harmonic Drive TM gear box
	High Resolution up to 0.01µm
	Ground fine pitch lead screw
	Maximum speed 1.6 mm/sec
	Force max. 20N
	Overload protection included
	Limit switches integrated

D E S C R I P T I O N

With the NEW Micro Pusher MP-10, manual drives can be replaced by motor drives. The MP-10 Micro-Pusher is an ideal device for motorizing mounts in optical or mechanical systems. Furthermore it is an idealcomponent for limited space conditions. The MP-10 Micro-Pusher is equipped with a ground ,zero-backlash, fine screw thread of 0.4 mm pitch resulting in a quiet, homogeneous, smooth move. There is no rotation of the tip, when moving in or out. All MP-10 Micro-Pushers are equipped with reference switches. Resolutions up to 0.01µm (SMC-series, without force) are achieved. MP-10 Micro-Pushers are offered with DC- or 2-phase-gear motor combination.

Technical data
Travel Range (mm)	6	12	24
Bi-directional Repeatability (µm)	+/- 5
Uni-directional Repeatability (µm) (without load)	+/- 1
Accuracy per 5 mm (µm)	10
Velocity Range (mm/sec)	0.001 ... 1.6
Fine-lead screw Pitch (mm)	0.4

Speed max. (mm/sec)
DC-B-006	0.16
2Phase-004	0.16

Resolution Open-Loop (µm) (wihtout load)
2Phase-004	0.5 (FS)

Resolution Closed-Loop (µm) (wihtout load)
DC-B-006	0.01

Current (Amps) / Voltage (Volts)
DC-B-006	0.08 \| -
2Phase-004	0.25 \| -

Material	Aluminium, black anodized, stainless steel
Weight (kg)	0.06	0.06	0.07
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see Appendix
