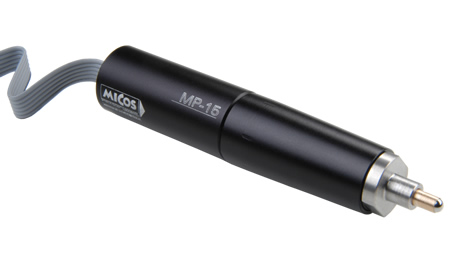

	3.080		Micro Pusher MP-15

Key features
	Travel range 6 mm and 12.7 mm
	High Resolution up to 0.049µm
	Fine pitch lead screw
	Maximum speed 0.16 mm/sec
	Force max. 10 N
	Limit switches integrated

F A C T S
Load Characteristics	Fx (N)	+/- Fy (N)	Fz (N)
DC-B-008	1	10	1
2Phase-005	1	10	1

D E S C R I P T I O N

With the Micro-Pusher MP-15 manual drives can be replaced by motor drives. The Micro-Pusher MP-15 are ideal devices for motorizing mounts in optical or mechanical systems. Furthermore it is an ideal component for limited space conditions. The Micro-Pusher MP-15 is equipped with a fine screw thread of 0.5 mm pitch resulting in a quiet homogeneous smooth move. Resolutions up to 0.049 µm (SMC-series, without force ) are achieved. Micro-Pusher MP-15 are offered with DC or 2-phase-gear motor.

Technical data
Travel Range (mm)	6	12.7
Bi-directional Repeatability (µm)	+/- 10
Uni-directional Repeatability (µm)	+/- 2
Accuracy mm (µm)	+/- 20
Velocity Range (mm/sec)	0.001 ... 0.16
Fine-lead screw Pitch (mm)	0.5

Speed max. (mm/sec)
DC-B-008	0.16
2Phase-005	0.1

Resolution Open-Loop (µm)
2Phase-005	0.098 (FS)

Resolution Closed-Loop (µm)
RE-002, Rotary encoder feedback	0.049

Current (Amps) / Voltage (Volts)
DC-B-008	0.32 \| 12
2Phase-005	0.25 \| -

Material	Aluminium, black anodized, stainless steel
Weight (kg)	0.10
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning motor and connectors, see Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-15 Motors

	DC-B-008	2Phase-005

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-15 Base

Travel range	A (mm)	ØB (mm)
6 mm	33.3	dia 6g6
6 mm		dia 9.5g6
6 mm		M8 x 0.35
6 mm		M6 x 0.5
12.7 mm	40 *45	dia 6g6
12.7 mm		dia 9.5g6
12.7 mm		M8 x 0.35
12.7 mm		*M6 x 0.5

n.a. = not available

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-15 Ordering information
