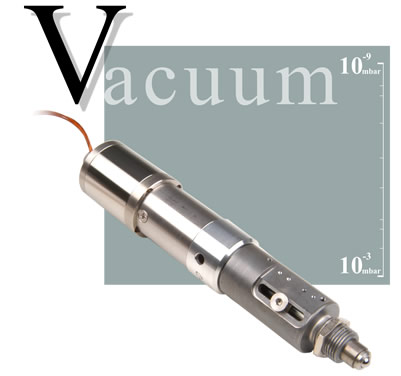

	3.070		Micro Pusher MP-20 S

Key features
	Travel range 12.5 mm
	High Resolution up to 0.00554 µm
	Fine pitch lead screw
	Maximum speed 3 mm/sec
	Force max. 2 kg
	Limit switches integrated
	Module combination

F A C T S
Load Characteristics	Fx (N)	+/- Fy (N)	Fz (N)
DC-B-010	1	20	1
2Phase-010	1	20	1
2Phase-025	1	12	1

D E S C R I P T I O N

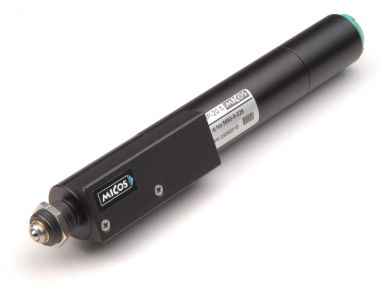

With the Micro-Pusher MP-20 S manual drives can be replaced by motor drives. Furthermore it is an ideal component for limited space conditions. For positioning tasks light structural parts such as mirrors and diodes can be directly mounted to the point. The Micro-Pusher MP-20 S is equipped with a fine screw thread of 0.25mm pitch resulting in a quiet homogeneous smooth move. Resolutions up to 0.01µm (SMC-series) are achieved. The Micro-Pusher MP-20 S is equipped with two mechanical limit switches to prevent damage from accidental overtravel. No rotation when running-in and running-out. Micro-Pusher MP-20 S are offered with DC-gear, 2-phase-gear or 2-phase direct drive motor. The point can be supplied alternatively with crowned or flat ground inserts. Please indicate when ordering.

Technical data
Travel Range (mm)	12.5
Bi-directional Repeatability (µm)	2
Uni-directional Repeatability (µm)	+/- 0.2
Accuracy mm (µm)	+/- 5
Velocity Range (mm/sec)	0.001 ... 3
Fine-lead screw Pitch (mm)	0.25

Speed max. (mm/sec)
DC-B-010	1
2Phase-010	0.25
2Phase-025	3

Resolution Open-Loop (µm)
2Phase-010	0.013725 (SMC) \| 0.13725 (FS)
2Phase-025	0.125 (SMC) \| 1.25 (FS)

Resolution Closed-Loop (µm)
RE-010, Rotary encoder feedback	0.005540

Current (Amps) / Voltage (Volts)
DC-B-010	0.32 \| 12
2Phase-010	0.25 \| -
2Phase-025	1.2 \| -

Material	Aluminium, black anodized
Weight (kg)	0.15

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-20 S Base

Travel range

12,5 mm

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MP-20 S Ordering information
MP-20 S Ordering information	DC-B-010 2Phase-010 2Phase-025	1 2 4
	DC-B-010 2Phase-010 2Phase-025	1 2 4

	Surface flat Surface crowned	1 2

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
