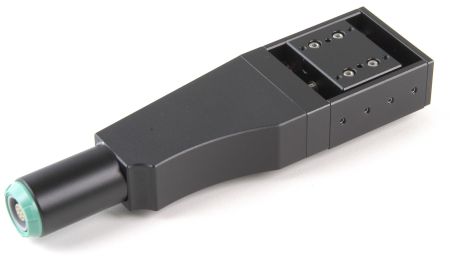

	3.030		Micro Stage MT-40

Key features
	Travel range up to 26 mm
	Backlash-compensated leadscrew
	Direct driven stepper-motor
	High resolution up to 0.00125 µm
	Maximum speed 5 mm/sec
	Load capacity 1 kg
	Crossed-roller bearings
	Special, tempered Aluminium
	Limit switches integrated
	Module combination

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-010	5	5	10	0.4	0.6	0.4	250	150
2Phase-010	5	5	10	0.4	0.6	0.4	250	150
2Phase-020	5	5	10	0.4	0.6	0.4	250	150

D E S C R I P T I O N

Micro Stages MT-40 are suited for the precise positioning of small construction parts such as fibres, optics, laser diodes and mounting for inspection equipment. The modules can be space-saving assembled to XYZ-systems. The Micro Stage MT-40 is equipped with prestressed zero-backlash crossed roller bearings and a precision lead screw. Directly driven with a 2-phase-step motor without gear or with a zero-backlash DC- or 2-phase-step gear motor. Especially significant is the good smooth move and high resolution. Travel range 10 mm or 26 mm.Two limit switches prevent damage from accidental overtravel. XY-assembly can only be made at plant and must be indicated when ordering.
(Code: 6218-9-X22)

Technical data
Travel Range (mm)	10	26
Bi-directional Repeatability (µm)	+/- 2
Uni-directional Repeatability (µm)	+/- 0.1
Accuracy per 5 mm (µm)	+/- 5
Velocity Range (mm/sec)	0.001 ... 5
Straightness / Flatness (µm)	+/- 0.3	+/- 0.7
Pitch (µrad)	+/- 150	+/- 200
Yaw (µrad)	+/- 150
Leadscrew Pitch (mm)	0.25

Speed max. (mm/sec)
DC-B-010	1
2Phase-010	0.25
2Phase-020	5

Resolution Open-Loop (µm)
2Phase-010	0.001372 (SMC) \| 0.1372 (FS)
2Phase-020	0.00125 (SMC) \| 1.25 (FS)

Resolution Closed-Loop (µm)
RE-005, Rotary encoder feedback	0.005540

Current (Amps) / Voltage (Volts)
DC-B-010	0.32 \| 12
2Phase-010	0.25 \| -
2Phase-020	1.2 \| -

Material	Tempered Aluminium , black anodized
Weight (kg)	0.15	0.2

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MT-40 Motors

2Phase-010		2Phase-020

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MT-40 Base

Travel ranges	A (mm)	B (mm)	C (mm)	D (mm)
10 mm	23	52.5	1x16	6
26 mm	32.5	71.5	2x25	8

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MT-40 Ordering information
MT-40 Ordering information	DC-B-010 2Phase-010 2Phase-020		1 2 3
	DC-B-010 2Phase-010 2Phase-020		1 2 3

		X axes XY axes (setup by MICOS)	1 2

		10 mm 26 mm (1")	2 3
