| Key
features |
|
|
|
 |
|
Clear
aperture 20 mm |
|
|
|
|
|
Worm
gear drive |
|
|
|
|
|
Repeatability
0.005° |
|
|
|
|
|
Precision
bearings |
|
|
|
|
|
Precise,
smooth continuous 360° motion |
|
|
|
|
|
High
precision four point-bearings |
|
|
|
|
|
Speed
up to 7 °/sec |
|
|
|
|
|
Load
up to 2 kg |
|
|
|
|
|
Reference
switch integrated (Hall sensors HLS) |
|
 |
|
| F
A C T S |
|
|
|
|
|
Load
Characteristics |
Fx
(N) |
Fz
(N) |
Mx
(Nm) |
Mz
(Nm) |
ka
(µrad/Nm) |
DC-B-009  |
10 |
20 |
2 |
0.2 |
270 |
|
10 |
20 |
2 |
0.2 |
270 |
| D
E S C R I P T I O N |
|
| |
|

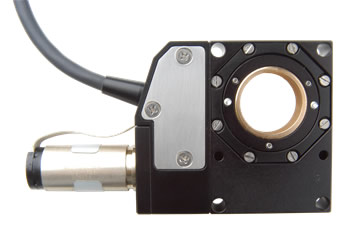

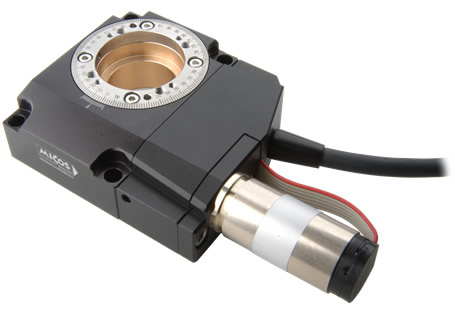

The NEW Rotation
Stage RS-40 are mainly applied in the
range of industrial measuring techniques, vision
control, micro-laser application and for precision
micro-handling. The body is fabricated from a
special, high-rigidity tempered AI-alloy. A precision
bearing guarantees a perfectly smooth move. The
RS-40 rotation stages have nearly zero backlash
worm gear reduction. All RS-40 motorized rotation
stages are equipped with reference switches (Hall
sensors HLS). Drive options such as DC, - 2-phase-micro-step
(SMC-series) motors are available. |
|
| Technical
data |
|
| Rotation
Range (°) |
360,
endless |
| Worm
gear reduction |
90:1 |
| Accuracy
(°) |
+/-
0.2 |
| Repeatability
(°) |
+/-
0.005 |
| Reversal
Error (°) |
+/-
0.04 |
| Velocity
Range (°/sec) |
0.001
... 7 |
| Flatness
(µrm) |
+/-
5 |
| Eccentricity
(µrm) |
+/-
5 |
| Wobble
(µrad) |
+/-
35 |
|
| Speed
max. (°/sec)
|
| DC-B-009 |
7 |
| 2Phase-010 |
5 |
|
| Resolution
Open-Loop (°) |
| 2Phase-010 |
0.0011
(SMC) | 0.0022 (FS) |
|
| Resolution
Closed-Loop (°)
|
| RE-010,
Rotary encoder |
0.00026 |
|
|
| Current
(Amps) / Voltage (Volts)
|
| DC-B-009 |
0.16
| 12 |
| 2Phase-010 |
0.25
| - |
|
|
| Material |
Special
aluminium, black anodized |
| Weight
(kg) |
0.65 |
Note: (SMC):
Micro-Step Mode, (FS): Full-Step 2Phase
More info: Detailed
information, concerning the
motor and connectors, see:
Appendix |
|
