	3.020		Micro Stage MT-55

Key features
	Travel range 5 mm
	Center hole 15 mm
	High Resolution up to 0.005549 µm
	Maximum speed 1 mm/sec
	Load capacity 0.8 kg
	High-precision ball-bearings
	Special, tempered Aluminium
	Limit switches integrated
	Module combination

F A C T S
Load Characteristics	Fx (N)	Fy (N)	Fz (N)	Mx (Nm)	My (Nm)	Mz (Nm)	kax (µrad/Nm)	kay (µrad/Nm)
DC-B-010	5	5	8	0.3	0.5	0.3	300	160
2Phase-010	5	5	8	0.3	0.5	0.3	300	160

D E S C R I P T I O N

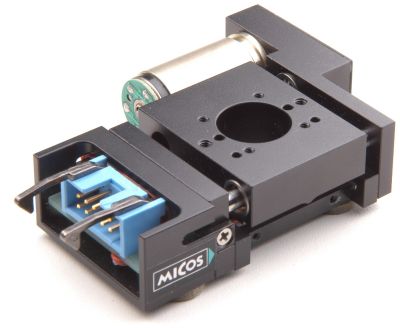

Micro Stages MT-55 are especially suited for the integration in difficult accessible places and limited space conditions. MT-55 can be employed for precise and high-resolution positioning of small construction parts such as fibres, optics and laser diodes. MT-55 can be assembled without problems to XYZ-modules. MT-55 is equipped with zero-backlash ball screws and precision lead screw with 0.25 mm pitch. The Micro Stage MT-55 is driven by a zero-backlash toothed belt and DC-, or 2-phase-step motor with zero-backlash gear. Quiet smooth move and highest resolution up to 0.0137µm is guaranteed (SMC). The travel range is 5 mm. MT-55 is provided with a center hole of 15 mm diameter, so it is well suited for all tasks of microscopy. Two limit switches prevent damage from accidental overtravel. The XY-assembly can only be made at plant and must be indicated when ordering. (Code: 6219-9-X20).

Technical data
Travel Range (mm)	5
Bi-directional Repeatability (µm)	+/- 4
Uni-directional Repeatability (µm)	+/- 0.1
Accuracy per 5 mm (µm)	+/- 5
Velocity Range (mm/sec)	0.001 ... 0.8
Straightness / Flatness (µm)	+/- 1
Pitch (µrad)	+/- 30
Yaw (µrad)	+/- 15
Leadscrew Pitch (mm)	0.25

Speed max. (mm/sec)
DC-B-010	1
2Phase-010	0.25

Resolution Open-Loop (µm)
2Phase-010	0.0137 (SMC) \| 0.13725 (FS)

Resolution Closed-Loop (µm)
RE-005, Rotary encoder feedback	0.005540

Current (Amps) / Voltage (Volts)
DC-B-010	0.32 \| 12
2Phase-010	1.2 \| -

Material	Special tempered Aluminium, black anodized
Weight (kg)	0.18

Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase
