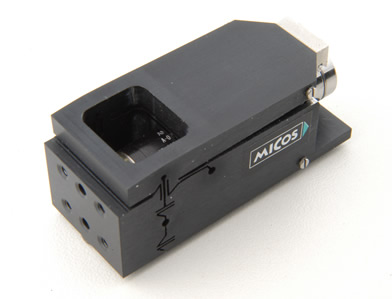

Nano Stepper NS-20 by MICOS

MOTION CONTROL Systems Positioners MiniP DirectD Control ManP Acces Vacuum MAC PhotonX Moskito Albatros Campus

Key features
	Travel range up to 40 µm
	Stepper motor with Micro Harmonic Drive TM gear box
	High resolution up to 3 nm
	Maximum speed 12 µm/sec
	Load capacity 0.1 kg
	Flexure bearings
	Special tempered aluminum

D E S C R I P T I O N

The NEW Nano Steppers NS-20 are suited for high precise positioning of small construction parts such as fibres, optics, laser diodes and mounting for inspection equipment. The NS-20 Nano Stepper can be mounted in a space-saving configuration. The NS-20 Nano Stepper is equipped with zero-backlash free flexure bearings. Driven with a backlash-free 2-phase-step gear motor. The good smooth move and high resolution are especially significant.

Technical data
Travel Range (µm)	40
Bi-directional repeatability (nm)	+/- 3
Uni-directional repeatability (nm)	+/- 1.5
Velocity range (µm/sec)	0.001 ... 12

Speed max. (µm/sec)
2Phase-003	12

Resolution Open-Loop (nm) sinus drive
2Phase-003	3 (FS)

Current (Amps) / Voltage range (Volts)
2Phase-003	0.25 \| -

Material	Temperaed aluminum , black anodized
Weight (kg)	0.05
Note: (SMC): Micro-Step Mode, (FS): Full-Step 2Phase More info: Detailed information, concerning the motor and connectors, see: Appendix

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

NS-20 Base

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

NS-20 Ordering information
