Key features

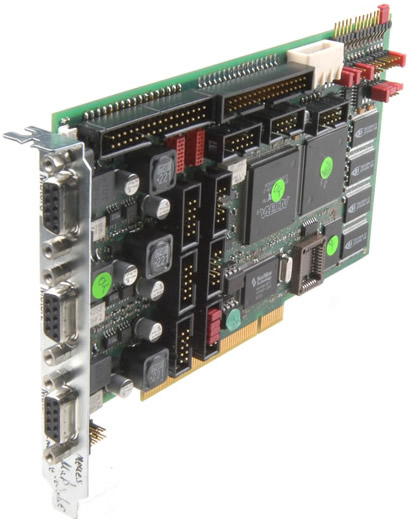

	3 Axes Microstep-Controller System
	3 Axes Microstep-Controller System
	High-Resolution-Microstep
	12 V bus-voltage, external up to 24 V
	133 MHz RISC Processor with Flash-Memory
	Velocity-range <0.1 µm/s with 1 mm pitch
	Linear Interpolation of all axes
	PCI-COM bridge RS-232 115 KBaud
	Venus-1 compatible string-based command-language
	2/3 Axes Joystick with/without Touch-Display
	Closed-Loop Mode RS422
	Digital I/O
	Trigger Output
	Position-correction static
	Description, please looking on page 5.010
	Temperatur-sensor input
	Download PDF data sheet ...
	Download PDF manual winpos programm ...
	Download PDF manual ...
	Download PDF manual Venus1 ...
	Download PDF How to use LabVIEW VI's ...

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

Technical data
Axes	3 or 2 Axes 2 phase stepper-motors
Computer-Interface	PCI-COM bridge 115200 Baud
Power-Configuration	12 V PC, max. 30 W ............ 2/3 axes 24 V external, max. 60 W ..... 2/3 axes
Limit-Switshes	2 per axis software configurable
Trajectory mode	linear interpolation
Velocity-range	<0.1 µm ... 15 rev/s with (200 step motor)
Limit-switches	2 per axis, software configurable
Program & Parameter	Flash-Memory
Amplifier	12 ... 24 V DC, with short-circuit & temperature protection
Phase-current:	max. 1.5 A
Housing	PCI slot HxB 99x184 mm

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

SMC pci Ordering information
SMC pci		Order-No.
3 axes SMC pci	Microstep-Controller	7161-9-001
2 axes SMC pci	Microstep-Controller [ready to use 3 axes with key code upgrade!]	7161-9-002

SMC pci-options		Order-No.
Closed Loop	For quadrature encoders RS-422 per axis	7161-9-115
Joystick	Joystick with 2 axes	7161-9-106
Joystick	Joystick with 3 axes	7161-9-107
Joystick	TDisp Joystick with 10 Key-Touch 2 axes	7161-9-108
Joystick	TDisp Joystick with 10 Key-Touch 3 axes	7161-9-109
Joystickinterface	for PC-slot with DSub9 connector	7161-9-105
Hand-Weehl	THand-Wheel with 3 axes selector	7161-9-110
Digital I/O	Digital I/O 3x Inputs (5-24V) 3x Outputs (5-24V)	7161-9-112
Trigger-Out	Trigger-Out function	7161-9-118
StPCor	Static position-correction	7161-9-120
Winpos	Full version Software	7161-9-124
Brake Logic	Brake Logic for one axis	7161-9-125

MOTION CONTROL Systems Positioners MiniPos DirectDrives Controllers ManPos Accessories Vacuum MAC PhotonX M A C

O R D E R I N G E X A M P L E

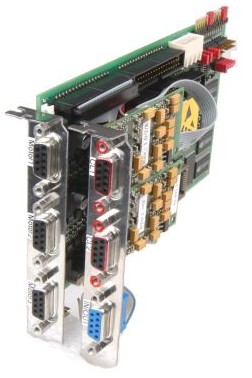

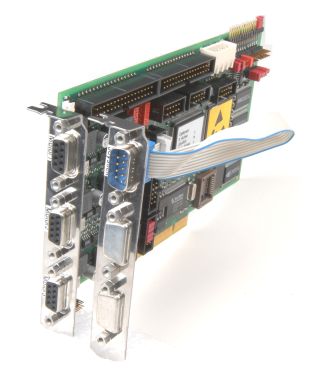

SMC pci & Closed Loop & Digital I/O	SMC pci & Joystick

	Founded in 1990, MICOS specializes in the development, manufacturing and marketing of ultra-high precision positioning components and systems for research and industry. We are experts in vacuum, ultra-high vacuum, clean room, and extreme climate environments down to 77 Kelvin.
