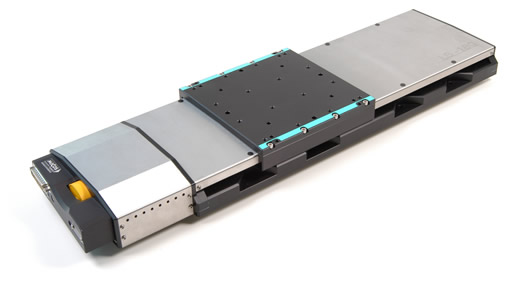

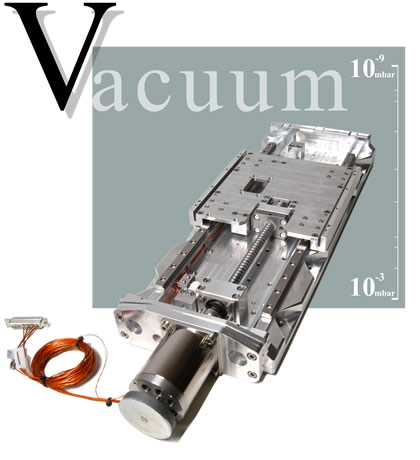

Linear
Stage LS-180
|
|
|
|
|
|
| |
D
E S C R I P T I O N
Special
characteristic of the Linear Stage LS-180 is
its tough structural shape. All important parts
are fabricated from a highrigid, tempered AI-alloy.
Linear stages of the structural series LS-180
are mainly suited for industrial laser treatment.
The Linear Stage is driven by a recirculating ball screw with
5 mm pitch. Linear guidance systems with recirculating linear
ball bearings guarantee a very high guiding stiffness.The Linear
Stage LS-180 can be used in any fitting position whatever.
For demanding positioning tasks the Linear Stages LS-180 are
supplied with a lateral arranged length measuring system which
is centrally installed between the guide. Then the operation
is running in closed-loop modus. The Linear Stages LS-180 can
be equipped with a DC, 2-phase-micro-step (SMC-series) motor.
Mechanical limit switches are integrated in the linear stage.
|
|
|
|
|
| Technical
data |
|
|
|
|
|
| Travel
Range (mm) |
155
|
205
|
305
|
408
|
508
|
| Bi-directional
Repeatability (µm) |
+/-
0.2 ... 4
|
|
|
|
|
| Accuracy
per 50 mm (µm) |
+/-
1 ... 10
|
|
|
|
|
| Velocity
Range (mm/sec) |
0.001
... 200
|
|
|
|
|
| Straightness
/ Flatness (µm) |
+/-
2
|
+/-
3
|
+/-
4
|
+/-
5
|
+/-
6
|
| Pitch
(µrad) |
+/-
40
|
+/-
50
|
+/-
60
|
+/-
70
|
+/-
80
|
| Yaw
(µrad) |
+/-
50
|
|
|
|
|
| Ballscrew
Pitch (mm) |
5
|
|
|
|
|
|
| Speed
max. (mm/sec) |
|
|
|
|
|
| DC-B-041 |
200
|
|
|
|
|
| 2Phase-050 |
40
|
|
|
|
|
|
| Resolution
Open-Loop (µm) |
|
|
|
|
|
| 2Phase-050 |
0.25
(SMC) / 25 (FS)
|
|
|
|
|
|
| Resolution
Closed-Loop (µm) |
|
|
|
|
|
| RE-010,
Rotary encoder |
2.5
|
|
|
|
|
| LS-010,
Linear steel scale |
0.1
|
|
|
|
|
|
| NominalCurrent
(Amps) / Voltage (Volts) |
|
|
|
|
|
| DC-B-041 |
3.8
| 24
|
higher
resolution on reqest!
|
| 2Phase-050 |
2.5
| -
|
|
| Material |
Special-Alu,
black anodized
|
|
| Weight
(kg) |
8.4
|
8.8
|
9.6
|
10.2
|
10.2
|
Note: (SMC):
Micro-Step Mode, (FS): Full Step 2Phase
More info: Detailed information, concerning the motor and connectors,
see: Appendix |
|
|
|
|
| LS-
180 Base & Motors |
|
Travel
ranges
|
A
(mm)
|
B
(mm)
|
|
155
mm
|
235
|
470
|
|
205
mm
|
260
|
520
|
|
305
mm
|
310
|
620
|
| 408
mm |
360 |
720 |
|
508
mm
|
410
|
820
|
|
|
|
 |
|
| |
DC-B-041 |
|
2Phase-050 |
|
|
|
|
|
|
|
|
|
|
|
|
| LS-180 Ordering
information |
|
|
|
|
|
 |
|
|
|
|
|
|
DC-B-040
2Phase-050
|
1
2
|
|
|
|
|
155
mm (6")
205 mm (8")
305 mm (12")
408 mm (16")
508
mm (20")
|
1
2
3
4
5
|
|
|
|
|
without
LS-010
LS-010, Linear steel scale
|
0
1
|
|
| |
 |
|
|
|
|
|
|
